Place of Origin:
Jiangsu China
Brand Name:
Yiteng
Certification:
ASME U/ISO9001/ ISO45001/ ISO14001/PED/CE/CRTU/DOSH
Model Number:
WFE/SPD/BEM/BES/AES/BEU/TFE

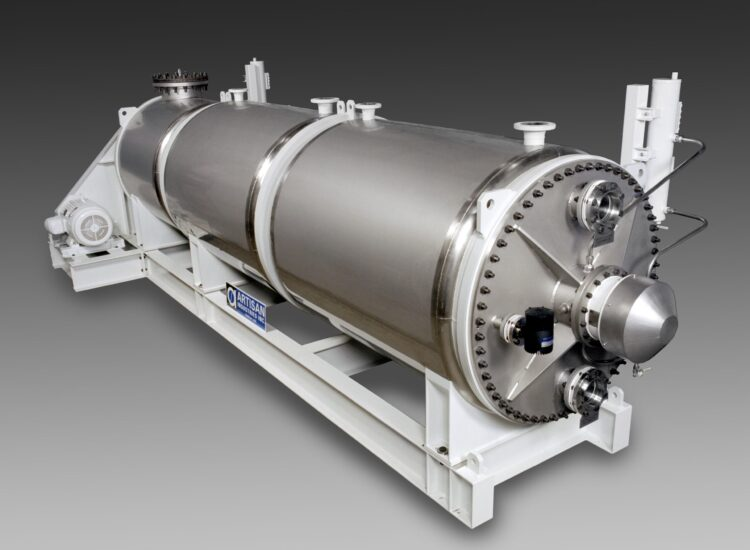

Wuxi Yiteng Pressure Vessel Co., Ltd. manufactures customized Industrial Thin Film Distillation Equipment for advanced separation, purification and recovery processes.
The equipment combines thin film evaporation technology with vacuum distillation principles to achieve efficient separation of components with different boiling characteristics.
It is designed for industries requiring:
✓ High separation efficiency
✓ Continuous processing
✓ Low thermal exposure
✓ High product recovery
✓ Stable industrial operation
Compared with conventional distillation columns, thin film distillation provides shorter residence time and better processing capability for difficult materials.
The automatic system can integrate:
Functions:
Operators can monitor:
Benefits:
✓ Easy operation
✓ Visual management
✓ Reduced human error
The system can automatically control:
Including:
Control:
Control:
Control:
| Parameter | Typical Value/Range | Remarks | ||||
| Evaporation Capacity | 5～5500 kg/h | Evaporation efficiency depends on material properties and heat transfer temperature difference | ||||
| Operating Pressure | 1atm～1mbar | High vacuum working conditions require matching vacuum units | ||||
| Operating Temperature | 50-300°C | High-temperature series with maximum operating temperature up to 350°C | ||||
| Heat Transfer Area | 0.1-100m² | Custom designs available for the full range | ||||
| Wiper Speed | 2-15 m/s | Affects liquid film thickness and heat transfer efficiency | ||||
| Motor Power | 0.25-55kw | Correlates positively with rotor diameter and material viscosity | ||||
| Viscosity Range | 1-100000cP | Specialized wiper design required for high-viscosity materials | ||||
| Wiper Type | Structural Features | Material & Temp. | Clearance/Film | Application Scenarios | Viscosity Limit | Industry |
| Hinged Wiper | Spring-loaded, self-adapting to wall wear | PTFE ≤150°C Enhance PTFE ≤200°C CF-PTFE ≤250°C polybenzoate ≤280°C Copper≤300°C 304 ≤300°C 316L ≤400°C |
General purpose | 20,000 cP | Glycerol, tire additives, inorganic salts, sugar alcohols, fermentation broth, solvent recovery, waste oil regeneration, high-salinity wastewater, etc. | |
| Sliding Wiper | Graphite/PTFE bushings, hydraulic assist | / | High-precision film control | 50,000 cP | Vitamins, antibiotics, resins, plant extracts, etc. | |
| Fixed Wiper | Rigid connection, no moving parts | / | Ultra-high viscosity (polymer melts) | 100,000 cP | food additives, fruit juices, dairy products, etc. | |
| Roller Wiper | Equipped with rollers, reducing friction | / | Materials with solid particles | 30,000 cP | Foods, polymer resins, syrups, asphalt, rubber liquid, etc. | |
| Wiper Type | Structural Features | Material & Temp. | Clearance/Film | Application Scenarios | Viscosity Limit | Industry |
| Hinged Wiper | Spring-loaded, self-adapting to wall wear | PTFE ≤150°C Enhance PTFE ≤200°C CF-PTFE ≤250°C polybenzoate ≤280°C Copper≤300°C 304 ≤300°C 316L ≤400°C |
General purpose | 20,000 cP | Glycerol, tire additives, inorganic salts, sugar alcohols, fermentation broth, solvent recovery, waste oil regeneration, high-salinity wastewater, etc. | |
| Sliding Wiper | Graphite/PTFE bushings, hydraulic assist | / | High-precision film control | 50,000 cP | Vitamins, antibiotics, resins, plant extracts, etc. | |
| Fixed Wiper | Rigid connection, no moving parts | / | Ultra-high viscosity (polymer melts) | 100,000 cP | food additives, fruit juices, dairy products, etc. | |
| Roller Wiper | Equipped with rollers, reducing friction | / | Materials with solid particles | 30,000 cP | Foods, polymer resins, syrups, asphalt, rubber liquid, etc. | |
The feed material enters the distillation chamber and forms a thin flowing film on the heated surface.
Under vacuum conditions:
This process improves separation efficiency while reducing thermal stress.
✔ Intelligent automation capability
✔ Customized industrial solutions
✔ Professional stainless steel equipment manufacturing
✔ Suitable for global industrial projects
✔ Complete technical support
✔ Factory direct supply
A:
Yes. The system can integrate PLC control, automatic monitoring and process parameter adjustment.
A:
Yes. Remote monitoring and industrial communication options are available.
A:
Yes. The automatic Thin Film Evaporator is designed for stable continuous industrial operation.
