Place of Origin:
Jiangsu China
Brand Name:
Yiteng
Certification:
ASME U/ISO9001/ ISO45001/ ISO14001/PED/CE/CRTU/DOSH
Model Number:
WFE/SPD/BEM/BES/AES/BEU/TFE

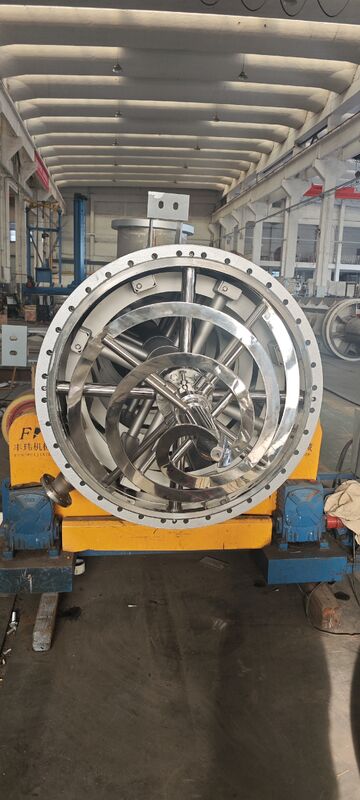

Wuxi Yiteng Pressure Vessel Co., Ltd. manufactures customized Vacuum Thin Film Evaporators designed for efficient evaporation, concentration and solvent recovery processes.
By operating under vacuum conditions, the equipment significantly reduces the boiling temperature of materials, allowing gentle evaporation while maintaining product quality.
This technology is especially suitable for:
| Parameter | Typical Value/Range | Remarks | ||||
| Evaporation Capacity | 5～5500 kg/h | Evaporation efficiency depends on material properties and heat transfer temperature difference | ||||
| Operating Pressure | 1atm～1mbar | High vacuum working conditions require matching vacuum units | ||||
| Operating Temperature | 50-300°C | High-temperature series with maximum operating temperature up to 350°C | ||||
| Heat Transfer Area | 0.1-100m² | Custom designs available for the full range | ||||
| Wiper Speed | 2-15 m/s | Affects liquid film thickness and heat transfer efficiency | ||||
| Motor Power | 0.25-55kw | Correlates positively with rotor diameter and material viscosity | ||||
| Viscosity Range | 1-100000cP | Specialized wiper design required for high-viscosity materials | ||||

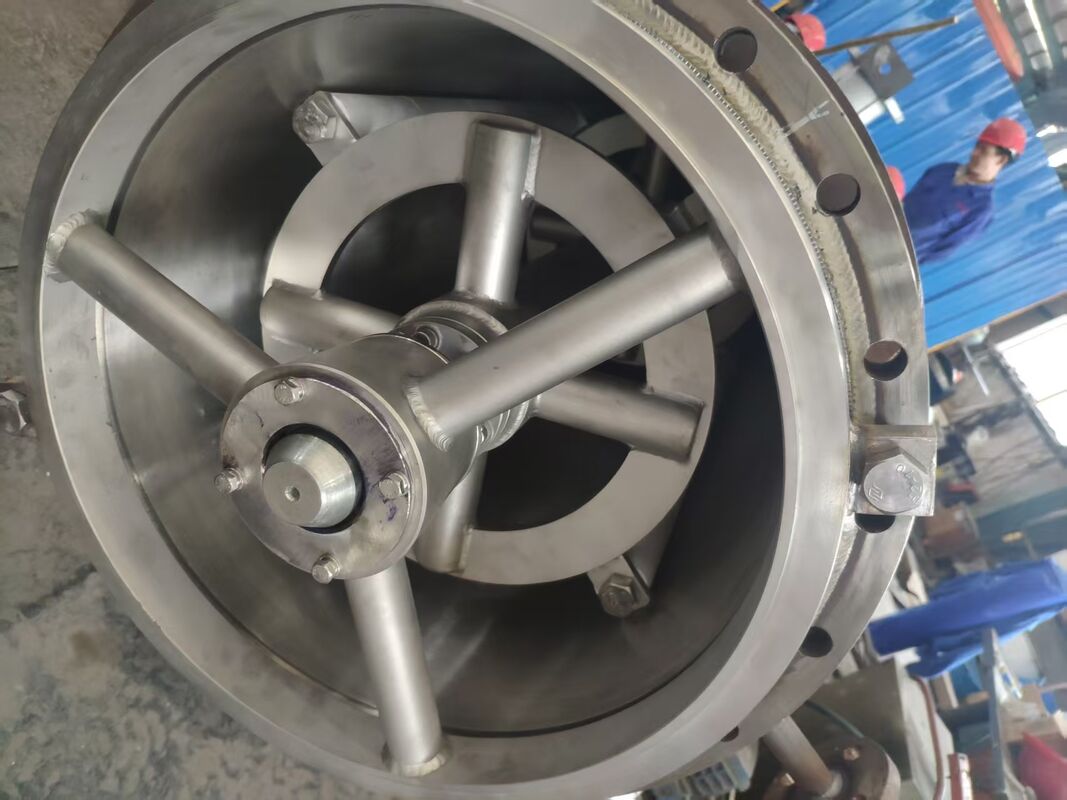

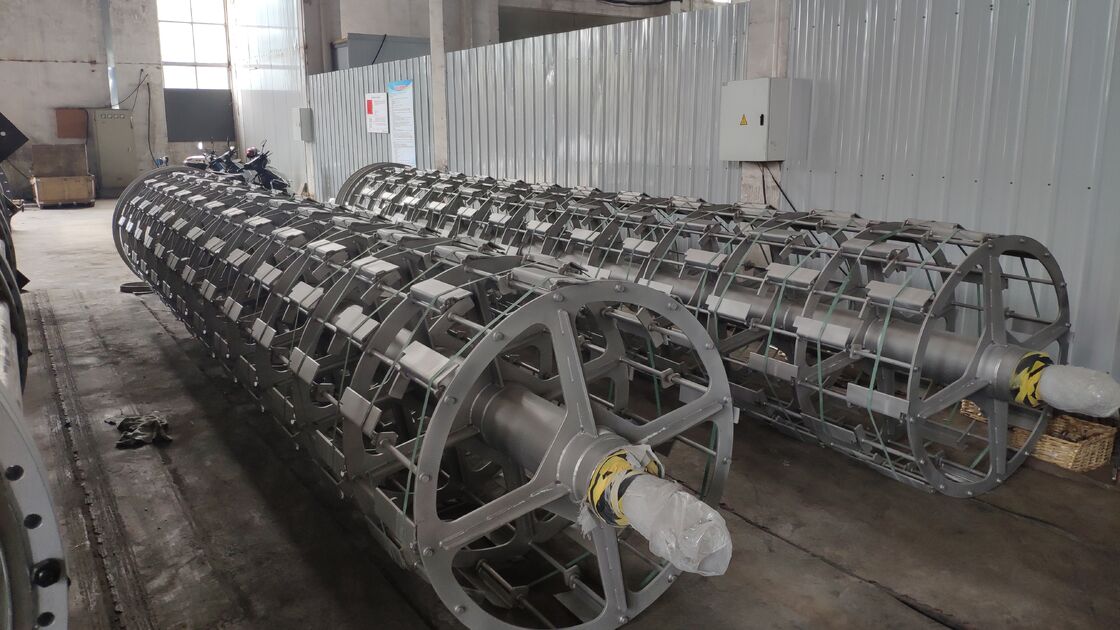

| Wiper Type | Structural Features | Material & Temp. | Clearance/Film | Application Scenarios | Viscosity Limit | Industry |
| Hinged Wiper | Spring-loaded, self-adapting to wall wear | PTFE ≤150°C Enhance PTFE ≤200°C CF-PTFE ≤250°C polybenzoate ≤280°C Copper≤300°C 304 ≤300°C 316L ≤400°C |
General purpose | 20,000 cP | Glycerol, tire additives, inorganic salts, sugar alcohols, fermentation broth, solvent recovery, waste oil regeneration, high-salinity wastewater, etc. | |
| Sliding Wiper | Graphite/PTFE bushings, hydraulic assist | / | High-precision film control | 50,000 cP | Vitamins, antibiotics, resins, plant extracts, etc. | |
| Fixed Wiper | Rigid connection, no moving parts | / | Ultra-high viscosity (polymer melts) | 100,000 cP | food additives, fruit juices, dairy products, etc. | |
| Roller Wiper | Equipped with rollers, reducing friction | / | Materials with solid particles | 30,000 cP | Foods, polymer resins, syrups, asphalt, rubber liquid, etc. | |
| Wiper Type | Structural Features | Material & Temp. | Clearance/Film | Application Scenarios | Viscosity Limit | Industry |
| Hinged Wiper | Spring-loaded, self-adapting to wall wear | PTFE ≤150°C Enhance PTFE ≤200°C CF-PTFE ≤250°C polybenzoate ≤280°C Copper≤300°C 304 ≤300°C 316L ≤400°C |
General purpose | 20,000 cP | Glycerol, tire additives, inorganic salts, sugar alcohols, fermentation broth, solvent recovery, waste oil regeneration, high-salinity wastewater, etc. | |
| Sliding Wiper | Graphite/PTFE bushings, hydraulic assist | / | High-precision film control | 50,000 cP | Vitamins, antibiotics, resins, plant extracts, etc. | |
| Fixed Wiper | Rigid connection, no moving parts | / | Ultra-high viscosity (polymer melts) | 100,000 cP | food additives, fruit juices, dairy products, etc. | |
| Roller Wiper | Equipped with rollers, reducing friction | / | Materials with solid particles | 30,000 cP | Foods, polymer resins, syrups, asphalt, rubber liquid, etc. | |
✔ Professional process equipment manufacturer
✔ Customized vacuum evaporation solutions
✔ Strong chemical equipment manufacturing experience
✔ Suitable for global industrial projects
✔ Factory direct supply
✔ Technical support from design to installation
A:
Vacuum evaporation lowers the boiling temperature, allowing efficient processing of heat-sensitive materials.
A:
Yes. It is widely used for organic solvent recovery and recycling applications.
A:
Chemical, pharmaceutical, battery materials, fine chemicals and environmental industries.
