Place of Origin:
Jiangsu China
Brand Name:
Yiteng
Certification:
ASME U/ISO9001/ ISO45001/ ISO14001/PED/CE/CRTU/DOSH
Model Number:
WFE/SPD/BEM/BES/AES/BEU/TFE

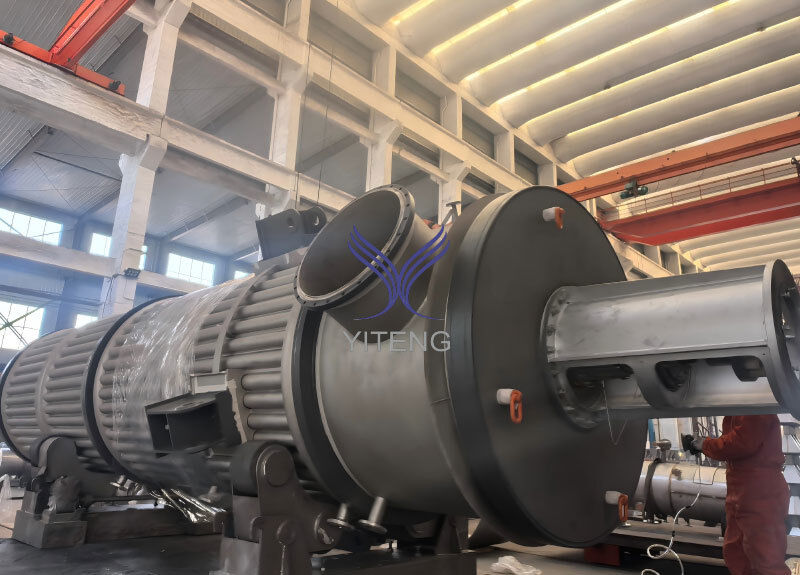

Wuxi Yiteng Pressure Vessel Co., Ltd. provides customized Battery Material Thin Film Evaporators designed for the rapidly growing new energy industry.
The equipment is developed for efficient processing of battery-related materials, especially applications requiring:
With advanced thin film evaporation technology, materials are processed under controlled temperature and vacuum conditions to achieve high recovery efficiency while reducing energy consumption.
Product parameter| Parameter | Typical Value/Range | Remarks | ||||
| Evaporation Capacity | 5～5500 kg/h | Evaporation efficiency depends on material properties and heat transfer temperature difference | ||||
| Operating Pressure | 1atm～1mbar | High vacuum working conditions require matching vacuum units | ||||
| Operating Temperature | 50-300°C | High-temperature series with maximum operating temperature up to 350°C | ||||
| Heat Transfer Area | 0.1-100m² | Custom designs available for the full range | ||||
| Wiper Speed | 2-15 m/s | Affects liquid film thickness and heat transfer efficiency | ||||
| Motor Power | 0.25-55kw | Correlates positively with rotor diameter and material viscosity | ||||
| Viscosity Range | 1-100000cP | Specialized wiper design required for high-viscosity materials | ||||
| Wiper Type | Structural Features | Material & Temp. | Clearance/Film | Application Scenarios | Viscosity Limit | Industry |
| Hinged Wiper | Spring-loaded, self-adapting to wall wear | PTFE ≤150°C Enhance PTFE ≤200°C CF-PTFE ≤250°C polybenzoate ≤280°C Copper≤300°C 304 ≤300°C 316L ≤400°C |
General purpose | 20,000 cP | Glycerol, tire additives, inorganic salts, sugar alcohols, fermentation broth, solvent recovery, waste oil regeneration, high-salinity wastewater, etc. | |
| Sliding Wiper | Graphite/PTFE bushings, hydraulic assist | / | High-precision film control | 50,000 cP | Vitamins, antibiotics, resins, plant extracts, etc. | |
| Fixed Wiper | Rigid connection, no moving parts | / | Ultra-high viscosity (polymer melts) | 100,000 cP | food additives, fruit juices, dairy products, etc. | |
| Roller Wiper | Equipped with rollers, reducing friction | / | Materials with solid particles | 30,000 cP | Foods, polymer resins, syrups, asphalt, rubber liquid, etc. | |
| Wiper Type | Structural Features | Material & Temp. | Clearance/Film | Application Scenarios | Viscosity Limit | Industry |
| Hinged Wiper | Spring-loaded, self-adapting to wall wear | PTFE ≤150°C Enhance PTFE ≤200°C CF-PTFE ≤250°C polybenzoate ≤280°C Copper≤300°C 304 ≤300°C 316L ≤400°C |
General purpose | 20,000 cP | Glycerol, tire additives, inorganic salts, sugar alcohols, fermentation broth, solvent recovery, waste oil regeneration, high-salinity wastewater, etc. | |
| Sliding Wiper | Graphite/PTFE bushings, hydraulic assist | / | High-precision film control | 50,000 cP | Vitamins, antibiotics, resins, plant extracts, etc. | |
| Fixed Wiper | Rigid connection, no moving parts | / | Ultra-high viscosity (polymer melts) | 100,000 cP | food additives, fruit juices, dairy products, etc. | |
| Roller Wiper | Equipped with rollers, reducing friction | / | Materials with solid particles | 30,000 cP | Foods, polymer resins, syrups, asphalt, rubber liquid, etc. | |
The battery-related liquid enters the evaporator chamber and forms a thin film on the heated surface.
Under vacuum conditions:
The process minimizes thermal damage and improves solvent recovery performance.
✔ Experienced process equipment manufacturer
✔ Customized solutions for lithium battery industry
✔ Efficient solvent recovery technology
✔ Stainless steel precision fabrication
✔ Support for international projects
✔ Factory direct supply
A:
Yes. The system is suitable for NMP solvent recovery and other organic solvent recycling applications.
A:
Yes. It is designed for battery material processing, solvent recovery and chemical recycling applications.
A:
Yes. PLC control and customized automation systems are available.
