Place of Origin:
Jiangsu China
Brand Name:
Yiteng
Certification:
ASME U/ISO9001/ ISO45001/ ISO14001/PED/CE/CRTU/DOSH
Model Number:
WFE/SPD/BEM/BES/AES/BEU/TFE

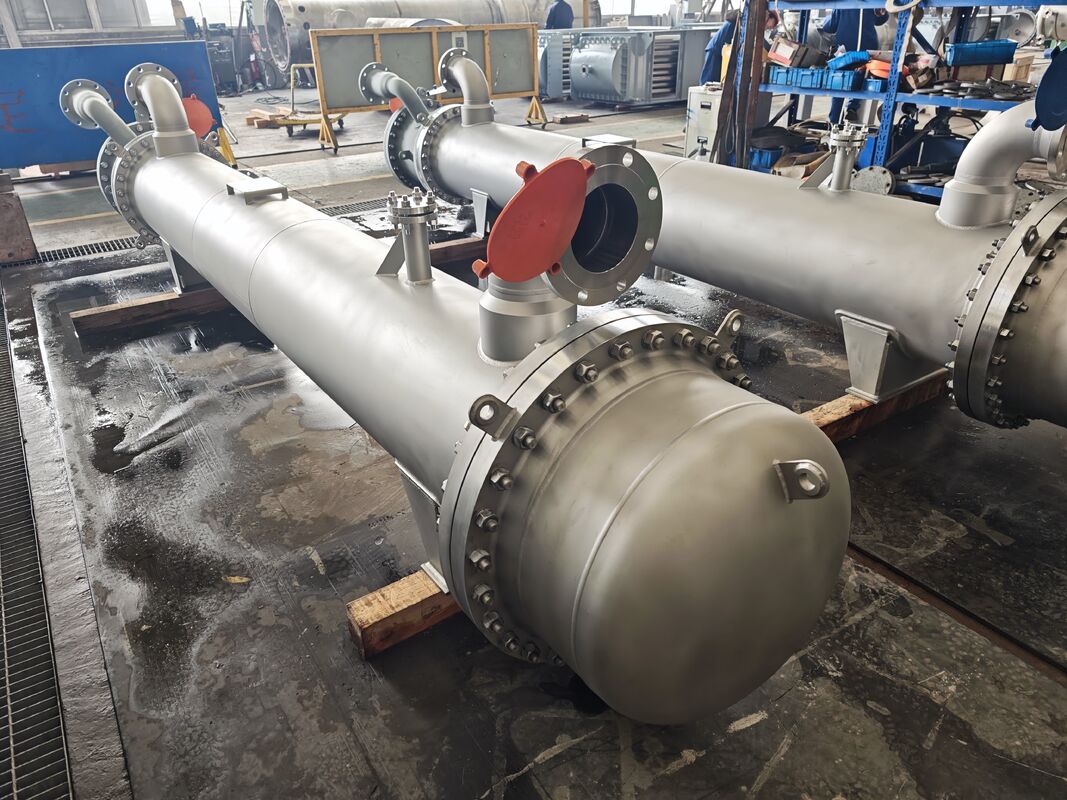

TEMA AES type floating head shell-and-tube exchanger with removable straight tube bundle. The floating head (S-type) allows free thermal expansion and eliminates differential thermal stress. Front head is A-type (flat cover), shell is E-type (single pass). The entire bundle can be extracted for mechanical cleaning and maintenance, suitable for high temperature difference and severe fouling services.
Technical Description
| Parameter | Typical Value/Range | Remarks |
| Design Standard | GB-T151/ASME VIII Div.1/TEMA/EN13445.TEMA/API660/TR CU 032/2013(ТР ТС 032/2013) | International standards |
| Heat Transfer Area | 1~5000m² | Custom sizes available |
| Design Pressure | -0.1~35 MPa(-1~350 bar) | Ultra-high-pressure models up to 50 MPa |
| Design Temperature | -196°C~+600°C | Cryogenic to high-temperature range |
| Shell Material | Carbon Steel/Stainless Steel/Duplex Stainless Steel/Titanium Alloy/Nickel-Based Alloy | Corrosion-resistant options |
| Tube Bundle Material | Carbon Steel/Stainless Steel/Duplex Stainless Steel/Titanium Alloy/Nickel-Based Alloy/Copper Alloy | Optional tube typesPlain tube/Finned tube/Threaded tube/Corrugated tube |
| Tube Diameter/Length | φ10~φ60 mm/1~20m | U-tube/straight tube options |
| Tube-Tube Sheet Connection | Welded/Tube Expanded/Strength Weldng+Light Expansion | Leak-proof design |
| Number of Tube Passes | 1~8 Passes | Multi-pass flow for temperature difference optimization |
| Baffle Type | Single/Double/Triple segmental/Helical/NTIW/Disk-and-Doughnut | Controls shell-side flow |
| Connection Standard | Flange with ANSI/DIN/GB/JIS Standard | DN25~DN1000 |
| Heat exchanger type | BEM,BEU,BKU,BES,BEW,BFM,BGM,BJM,BHM,BKM,BXM,AEU,AKU,AES | The exchanger type shall be determined based on customer requirements or thermal calculation. |
Why Partner With Us?
· 1:1 Drawing Optimization: Our engineering team reviews and optimizes your blueprints to reduce production costs.
· Reliable Lead Time: Streamlined manufacturing process ensures your project timeline is protected.
· Global Shipping Experience: Full support for sea freight, customs clearance, and documentation.
Let's discuss your next project!
