Place of Origin:
Jiangsu China
Brand Name:
Yiteng
Certification:
ASME U/ISO9001/ ISO45001/ ISO14001/PED/CE/CRTU/DOSH
Model Number:
WFE/SPD/BEM/BES/AES/BEU/TFE

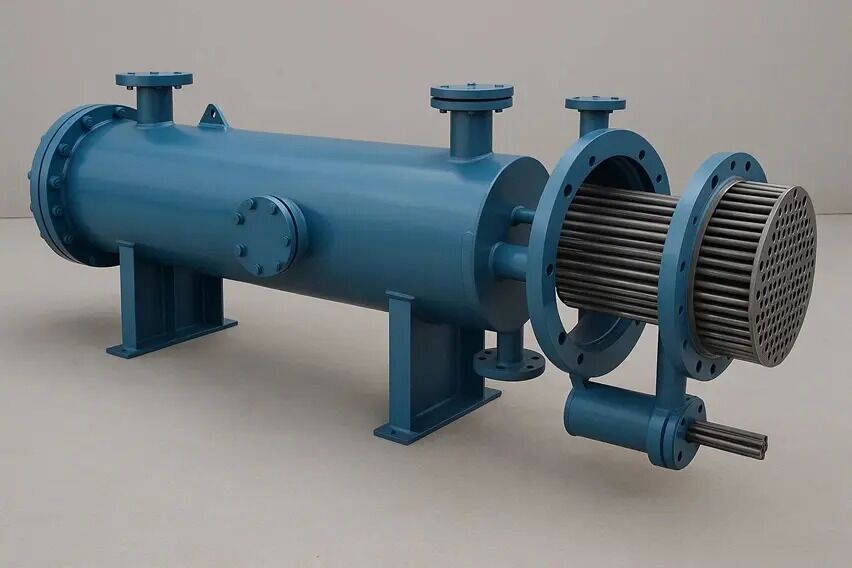

Wuxi Yiteng Floating Head Heat Exchanger is a high-performance shell and tube heat transfer solution designed for applications requiring large temperature differences, thermal expansion compensation, and reliable continuous operation.
The floating head structure allows the tube bundle to expand freely under different temperature conditions, reducing thermal stress and improving equipment reliability during long-term industrial operation.
Manufactured according to international pressure equipment standards, the exchanger is widely applied in chemical plants, petrochemical facilities, energy projects, and EPC industrial systems.
Technical Description
| Parameter | Typical Value/Range | Remarks |
| Design Standard | GB-T151/ASME VIII Div.1/TEMA/EN13445.TEMA/API660/TR CU 032/2013(ТР ТС 032/2013) | International standards |
| Heat Transfer Area | 1~5000m² | Custom sizes available |
| Design Pressure | -0.1~35 MPa(-1~350 bar) | Ultra-high-pressure models up to 50 MPa |
| Design Temperature | -196°C~+600°C | Cryogenic to high-temperature range |
| Shell Material | Carbon Steel/Stainless Steel/Duplex Stainless Steel/Titanium Alloy/Nickel-Based Alloy | Corrosion-resistant options |
| Tube Bundle Material | Carbon Steel/Stainless Steel/Duplex Stainless Steel/Titanium Alloy/Nickel-Based Alloy/Copper Alloy | Optional tube typesPlain tube/Finned tube/Threaded tube/Corrugated tube |
| Tube Diameter/Length | φ10~φ60 mm/1~20m | U-tube/straight tube options |
| Tube-Tube Sheet Connection | Welded/Tube Expanded/Strength Weldng+Light Expansion | Leak-proof design |
| Number of Tube Passes | 1~8 Passes | Multi-pass flow for temperature difference optimization |
| Baffle Type | Single/Double/Triple segmental/Helical/NTIW/Disk-and-Doughnut | Controls shell-side flow |
| Connection Standard | Flange with ANSI/DIN/GB/JIS Standard | DN25~DN1000 |
| Heat exchanger type | BEM,BEU,BKU,BES,BEW,BFM,BGM,BJM,BHM,BKM,BXM,AEU,AKU,AES | The exchanger type shall be determined based on customer requirements or thermal calculation. |
Why Partner With Us?
Supporting global project requirements:
We provide engineering cooperation for:
Each Floating Head Heat Exchanger can be customized based on:
Available documents:
A:
Floating head design provides better thermal expansion compensation and is suitable for applications with large temperature differences between shell and tube sides.
A:
Customers should provide:
A:
Yes. We can manufacture pressure equipment according to ASME VIII Div.1 requirements and provide related inspection documentation.
A:
Available materials include:
A:
Yes. Customized designs can be supplied for skid-mounted systems and turnkey industrial projects.
Packaging & Shipping
