Place of Origin:
Jiangsu China
Brand Name:
Yiteng
Certification:
ASME U/ISO9001/ ISO45001/ ISO14001/PED/CE/CRTU/DOSH
Model Number:
WFE/SPD/BEM/BES/AES/BEU/TFE

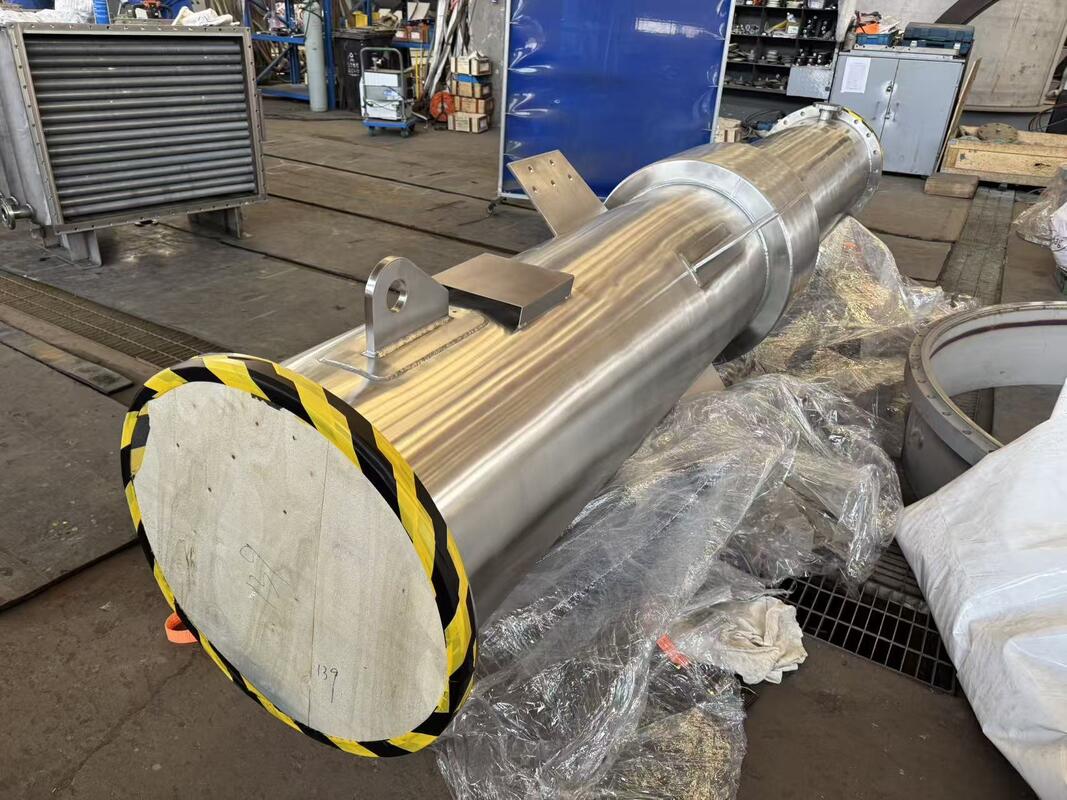

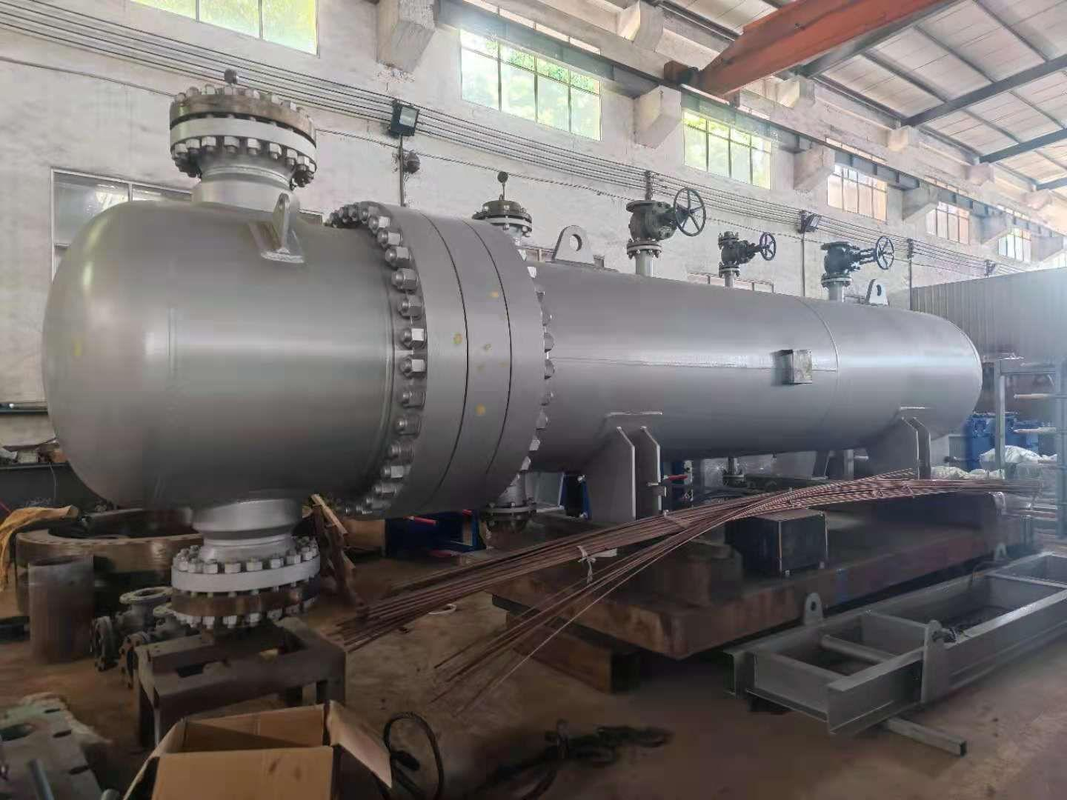

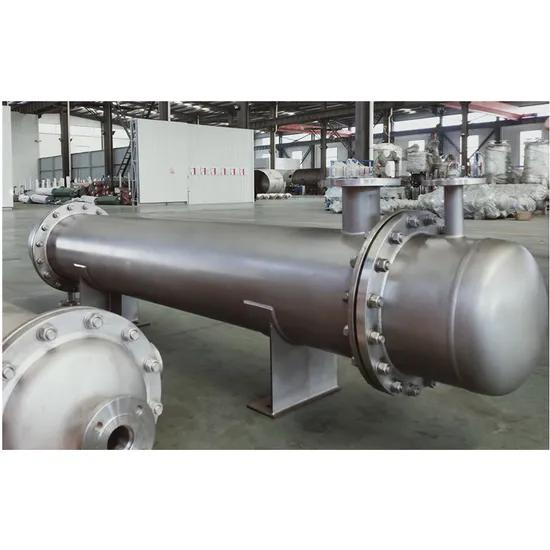

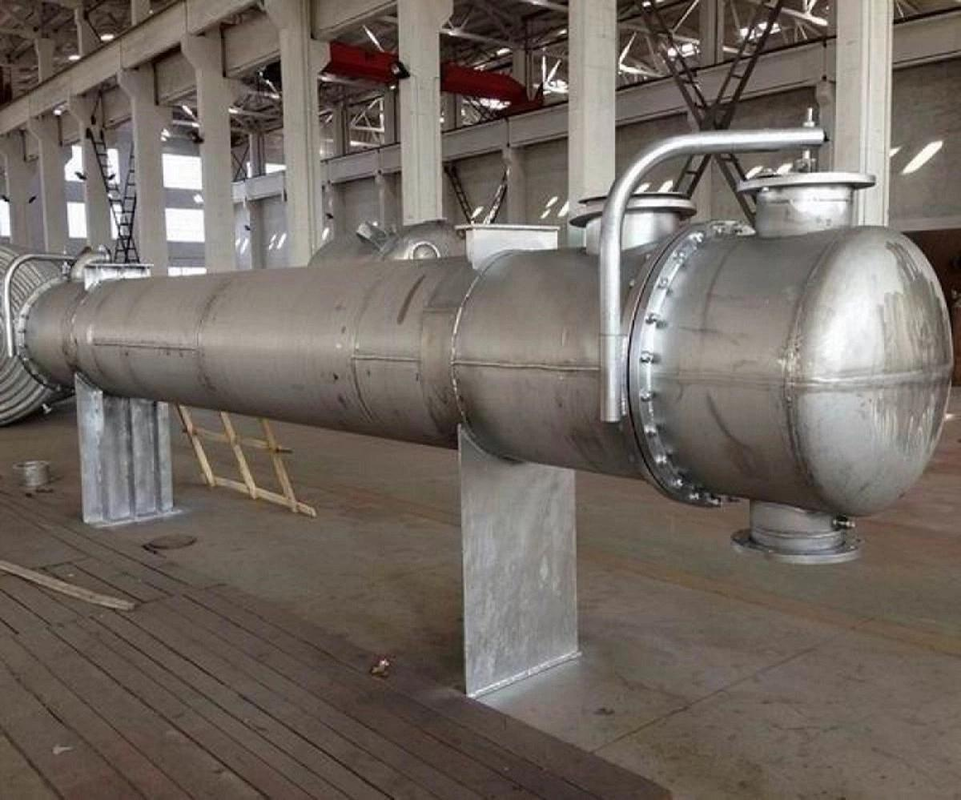

As mainstream heat transfer products, Shell and Tube Heat Exchanger, U tube heat exchanger and Tube Sheet Heat Exchanger cover most industrial heat exchange demands. Among them, Shell & tube heat exchanger, also named tube sheet heat exchanger, is the most widely used heat transfer equipment in chemical, petrochemical, power, energy and metallurgical industries, and the U tube heat exchanger is a common structural branch of shell and tube type products. It mainly consists of a cylindrical shell, tube bundle, tube sheets, baffles, front & rear channel heads, nozzles and expansion joints. All types including Shell and Tube Heat Exchanger, U tube heat exchanger and Tube Sheet Heat Exchanger can be designed and manufactured in accordance with GB/T 151, ASME VIII Div.1, TEMA, EN 13445, API 660 and Russian EAEU & GOST standards.
Product parameter
|
Parameter |
Typical Value/Range |
Remarks |
|
Design Standard |
GB/T151/TEMA/ASME VIII Div.1/EN13445.TEMA/API660/TR CU 032/2013(ТР ТС 032/2013) |
International standards |
|
Heat Transfer Area |
1~5000m² |
Custom sizes available |
|
Design Pressure |
-0.1~35 MPa (-1~350 bar) |
50 MPa |
|
Design Temperature |
-196°C~+600°C |
Cryogenic to high-temperature range |
|
Shell Material |
Carbon Steel/Stainless Steel/Duplex Stainless Steel/Titanium Alloy/Nickel-Based Alloy |
Corrosion-resistant options |
|
Tube Bundle Material |
Carbon Steel/Stainless Steel/Duplex Stainless Steel/Titanium Alloy/Nickel-Based Alloy/Copper Alloy |
|
|
Tube Diameter/Length |
φ10~φ60 mm/1~20m |
U-tube/straight tube options |
|
|
Welded/Tube Expanded/Strength Weldng+Light Expansion |
Leak-proof design |
|
Number of Tube Passes |
1~8 Passes |
Multi-pass flow for temperature difference optimization |
|
Baffle Type |
Single/Double/Triple segmental/Helical/NTIW/Disk-and-Doughnut |
Controls shell-side flow |
|
Connection Standard |
Flange with ANSI/DIN/GB/JIS Standard |
DN25~DN1000 |
|
Heat exchanger type |
BEM,BEU,BKU,BES,BEW,BFM,BGM,BJM,BHM,BKM,BXM,AEU,AKU,AES |
The exchanger type shall be determined based on customer requirements or thermal calculation. |
