Place of Origin:
Jiangsu China
Brand Name:
Yiteng
Certification:
ASME U/ISO9001/ ISO45001/ ISO14001/PED/CE/CRTU/DOSH
Model Number:
WFE/SPD/BEM/BES/AES/BEU/TFE

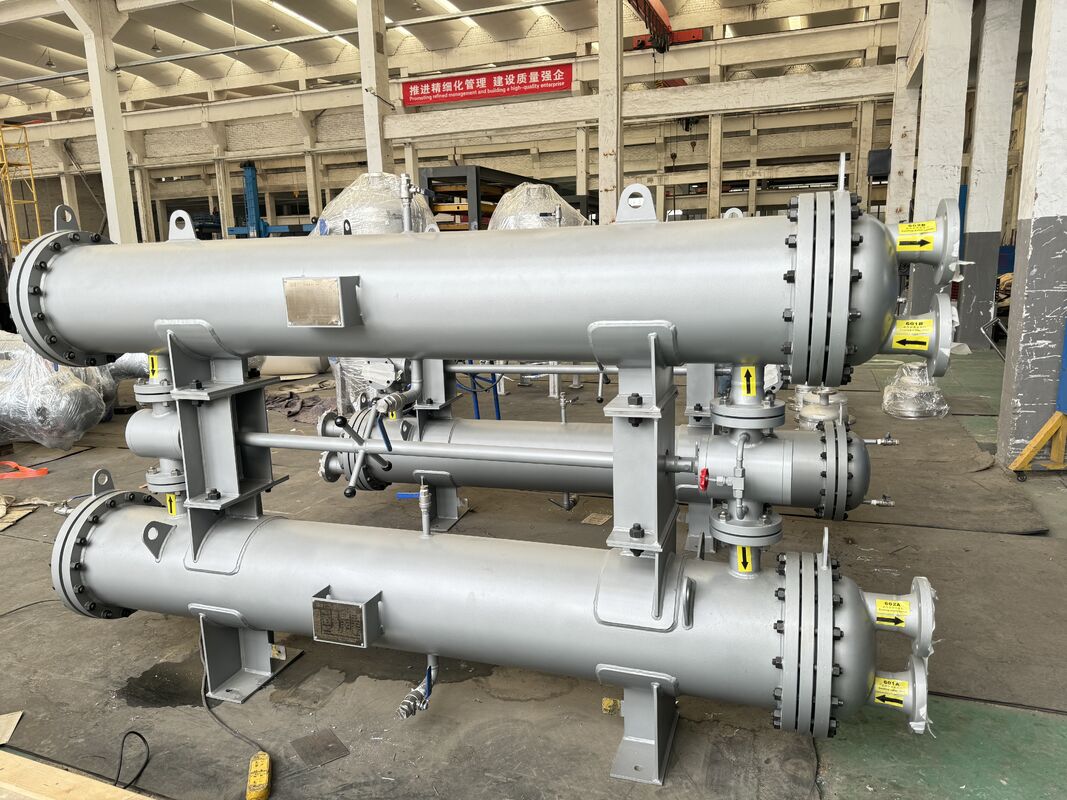

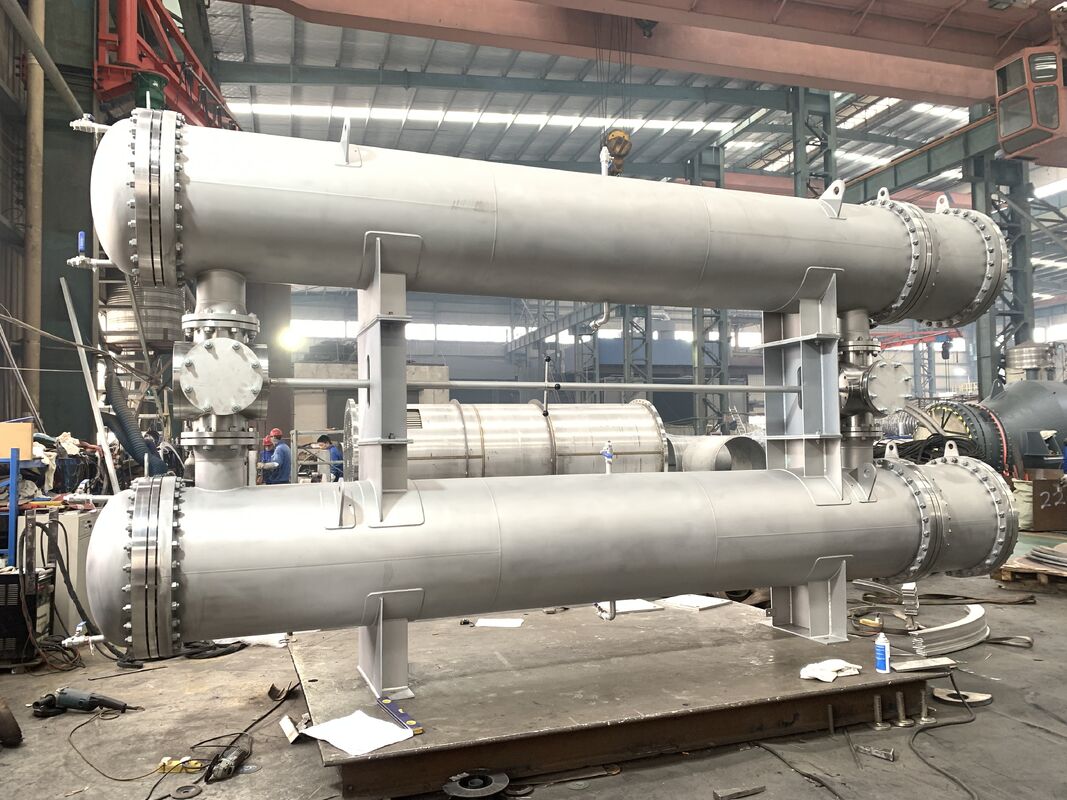

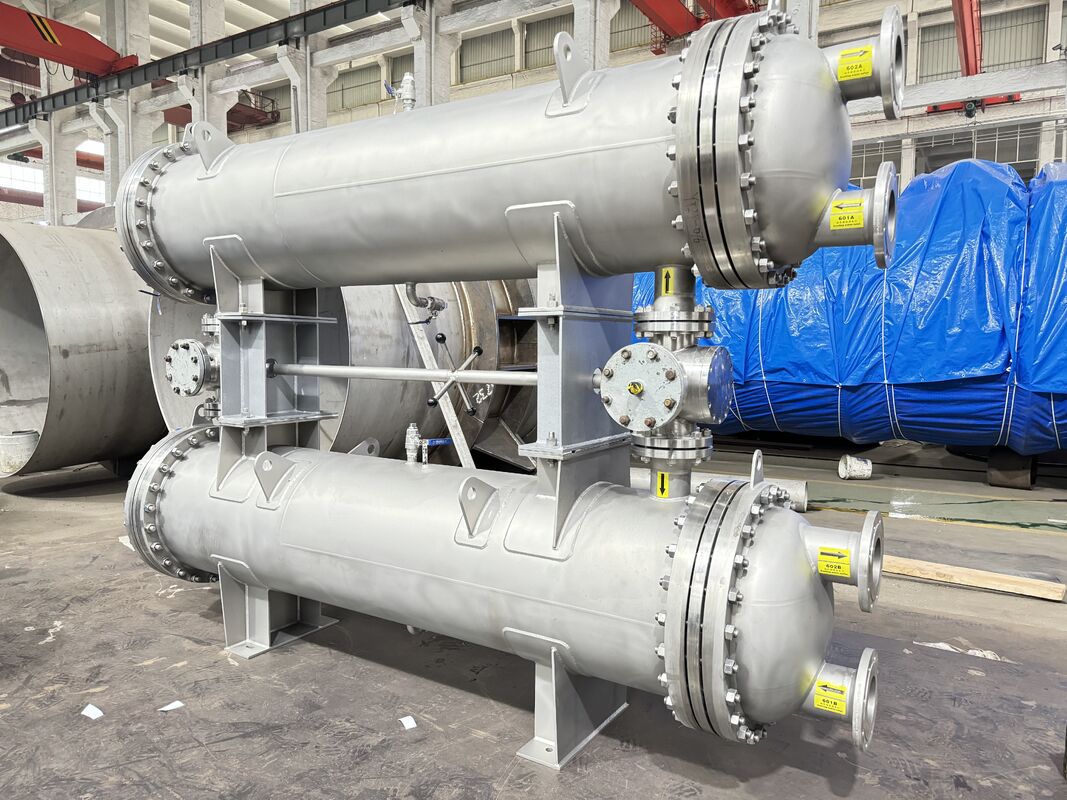

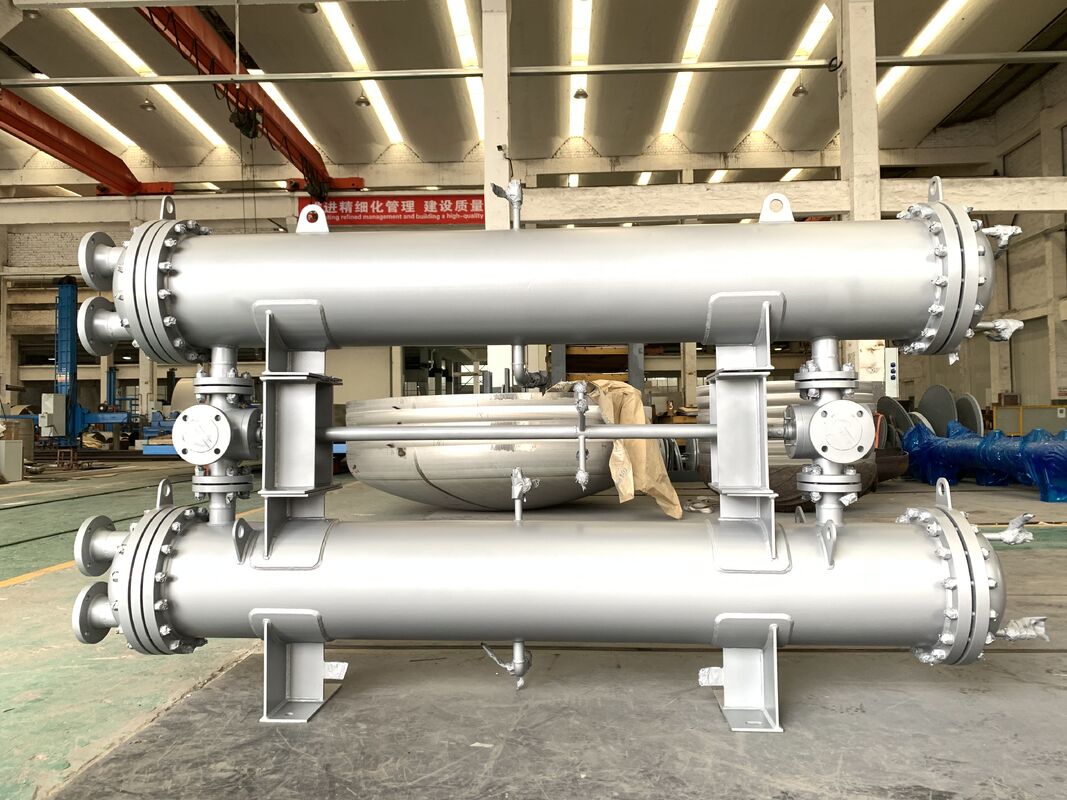

Wuxi Yiteng Pressure Vessel Co., Ltd. specializes in the design and manufacturing of high-performance ASME U Tube Heat Exchanger solutions for industries requiring reliable heat transfer under high temperature, high pressure and severe thermal expansion conditions.
Compared with conventional heat exchanger designs, the U tube heat exchanger adopts a U-shaped tube configuration that allows the tubes to expand freely under thermal stress, making it an ideal solution for applications with large temperature differences between shell-side and tube-side fluids.
As an experienced heat exchanger manufacturer, we provide customized U-tube solutions according to customer process requirements, including heat transfer area, pressure rating, material selection and mechanical design.
Our ASME heat exchanger products are manufactured according to international standards such as ASME VIII Division 1, TEMA and GB/T151, ensuring excellent mechanical strength, corrosion resistance and long-term operational reliability.
The removable Tube bundle design enables easier inspection, cleaning and maintenance, while the precision tube-to-tubesheet connection technology improves sealing performance and prevents leakage during continuous operation.
| Parameter | Specification |
|---|---|
| Product Type | U Tube Heat Exchanger |
| Design Standard | ASME VIII Division 1 / TEMA R, C, B / GB/T151 / EN13445 |
| Certification | ASME U Stamp Available |
| Heat Transfer Area | 1~5000 m² |
| Design Pressure | Vacuum to 35 MPa |
| Special High Pressure Design | Up to 50 MPa |
| Design Temperature | -196℃ ~ +600℃ |
| Tube Configuration | U-shaped seamless tubes |
| Tube Arrangement | Triangular / Square Pitch |
| Tube Material | Stainless Steel / Duplex Stainless Steel / Titanium / Nickel Alloy |
| Shell Material | Carbon Steel / Stainless Steel / Duplex Steel |
| Tube Diameter | Φ6~Φ50 mm Customized |
| Tube Length | Customized according to project requirements |
| Tube Passes | 2 Pass / Multi Pass |
| Shell Pass | Single Shell Pass / Multiple Shell Pass |
| Tube Sheet Type | Fixed Tube Sheet with U Tube Bundle |
| Tube Connection | Expansion / Welding Expansion Combination |
| Welding Standard | ASME Section IX / ISO 3834 |
| Inspection | RT / UT / PT / MT |
| Pressure Test | Hydrostatic Test / Pneumatic Test |
| Surface Treatment | Pickling / Passivation / Internal Polishing |
The U-shaped tube is the core component of this heat exchanger design.
Our manufacturing process includes:
This ensures:
Tube sheets are manufactured using CNC machining technology.
Key processes include:
High precision tube sheets ensure accurate tube installation and reliable sealing performance.
We apply professional tube joining technology:
Advantages:
All pressure welding operations follow qualified procedures according to:
Applicable welding processes:
Each U Tube Heat Exchanger undergoes complete quality inspection:
Wuxi Yiteng Pressure Vessel Co., Ltd. focuses on the design and manufacturing of pressure vessels and heat transfer equipment.
Our engineering team understands complex requirements involving
