Place of Origin:
Jiangsu China
Brand Name:
Yiteng
Certification:
ASME U/ISO9001/ ISO45001/ ISO14001/PED/CE/CRTU/DOSH
Model Number:
WFE/SPD/BEM/BES/AES/BEU/TFE
A Titanium Shell and Tube Heat Exchanger is a high-performance heat transfer solution designed for applications requiring exceptional corrosion resistance, lightweight structure, and long-term reliability. Titanium materials provide outstanding resistance against seawater, chlorides, acids, and other aggressive media.
Manufactured by an experienced Heat Exchanger Manufacturer, our titanium heat exchangers are engineered according to international pressure vessel standards, providing stable thermal performance under demanding operating conditions.

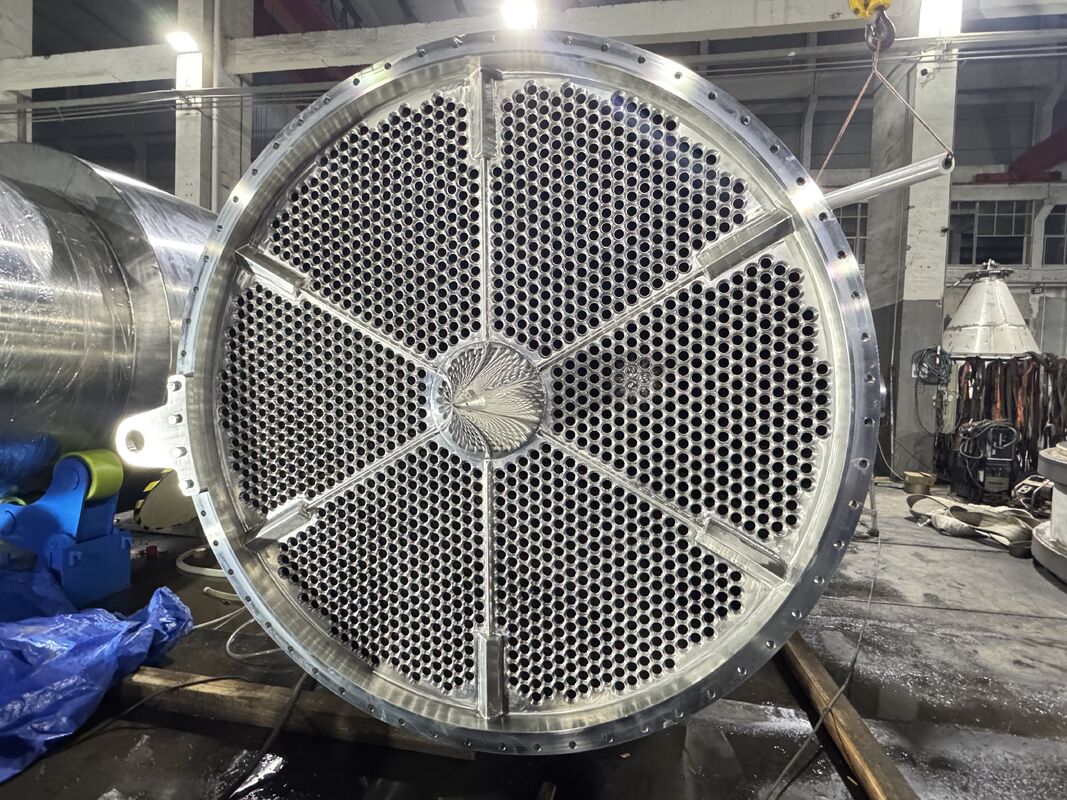

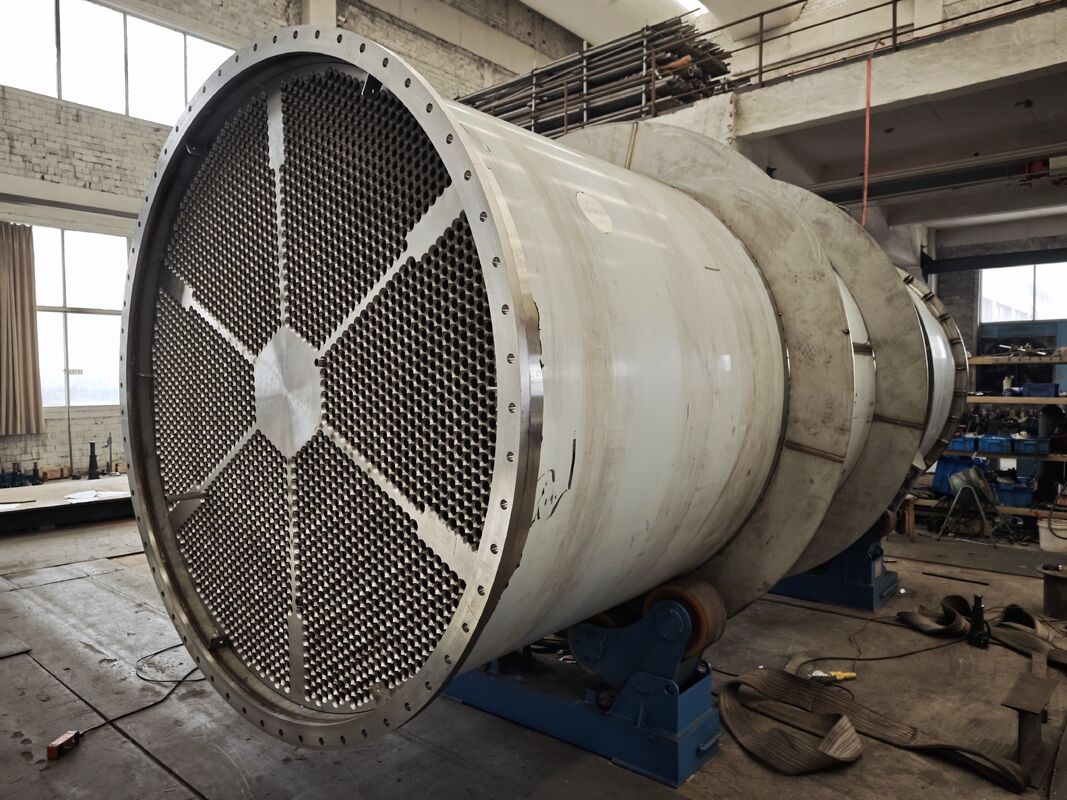

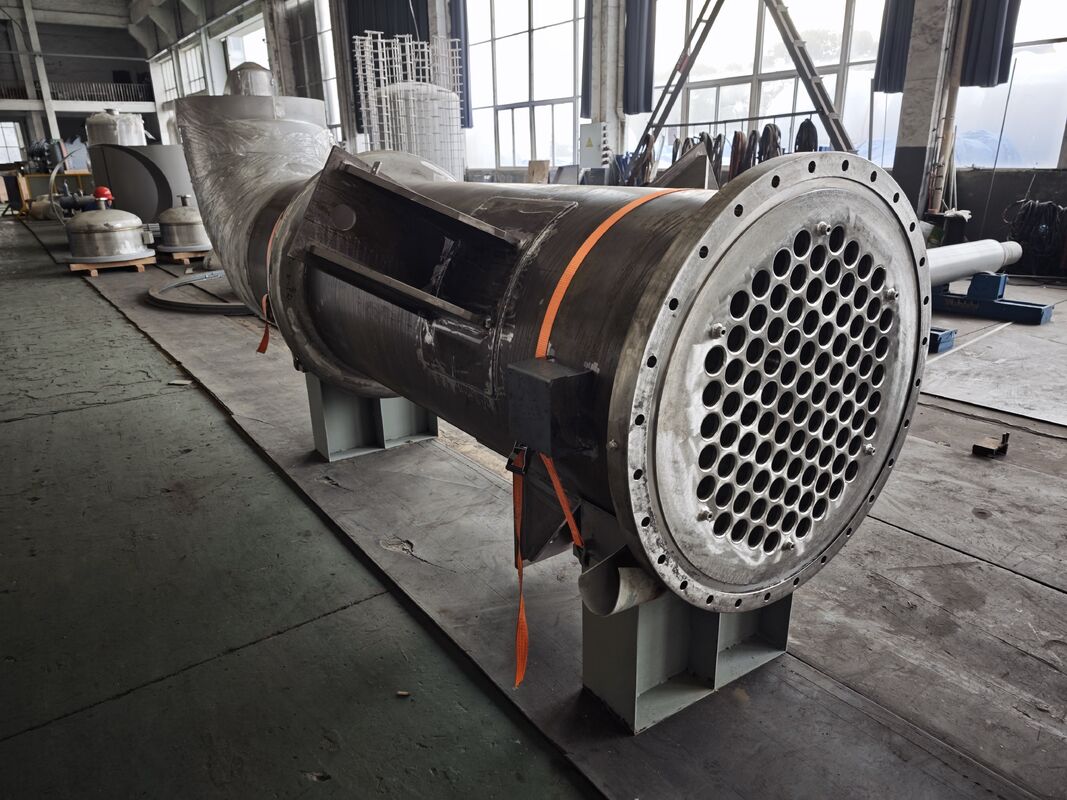

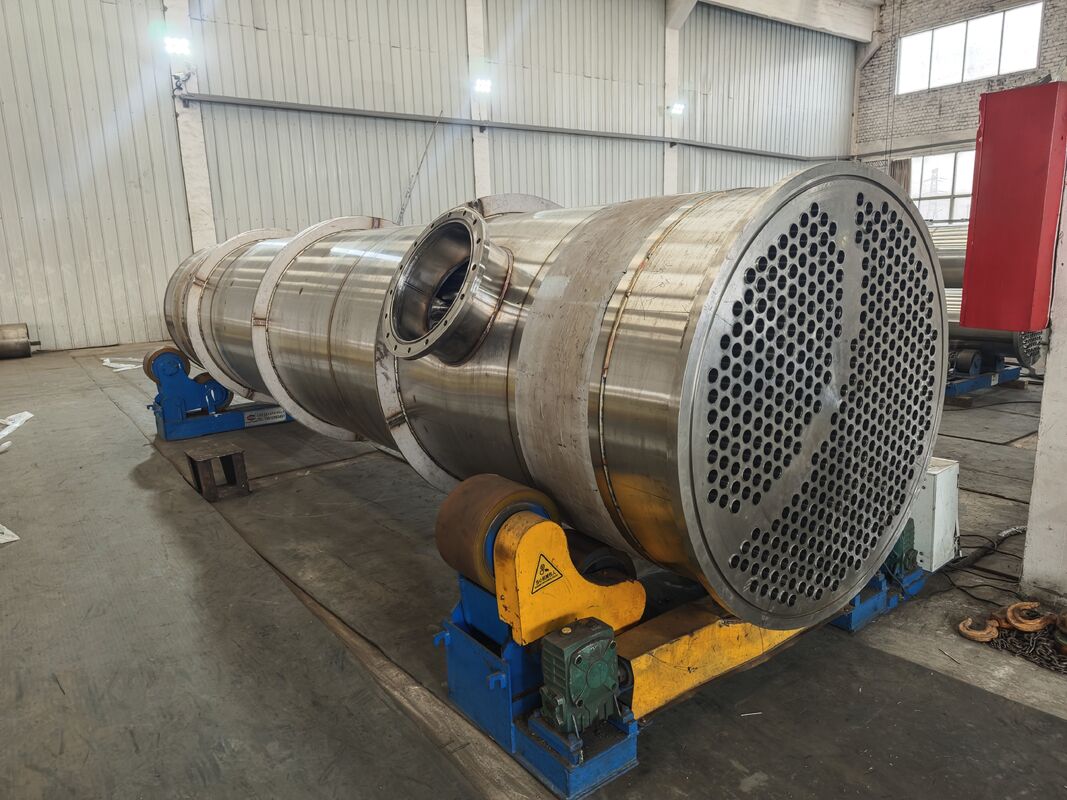

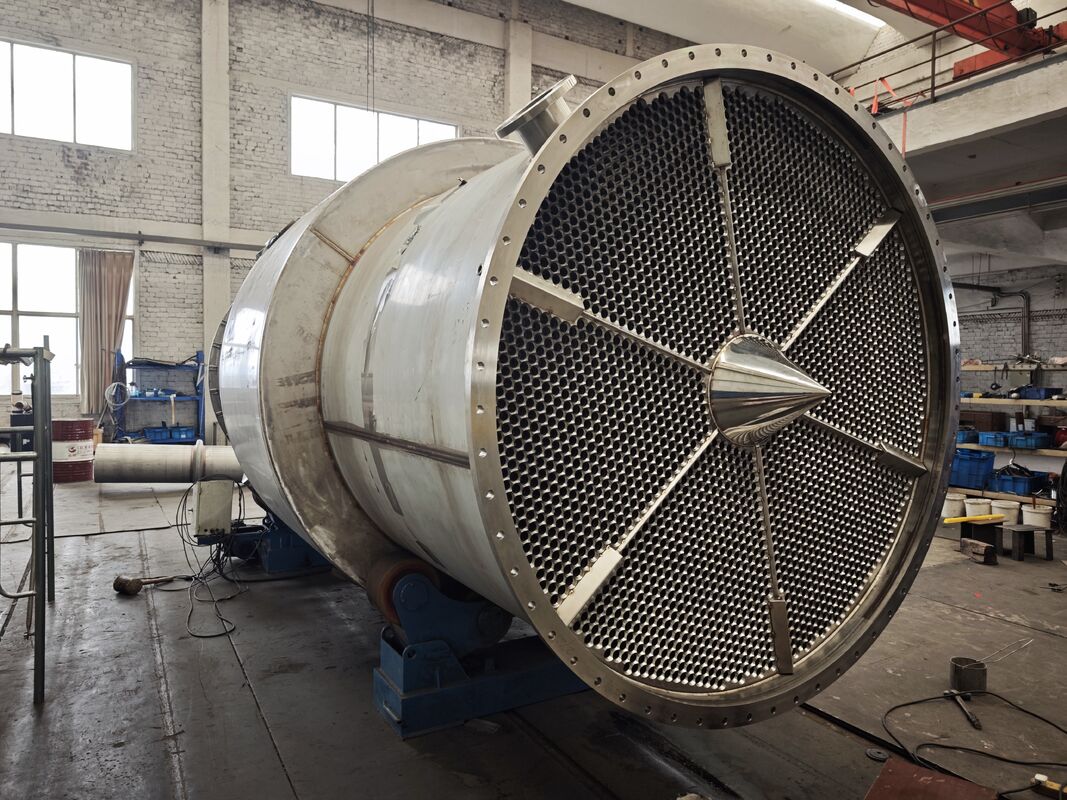

The equipment adopts advanced shell and tube construction, consisting of titanium tubes, tube sheets, shell body, baffles, and complete Tube Bundle assemblies. Compared with conventional stainless steel designs, titanium construction offers superior corrosion resistance and extended service life in harsh environments.
Our titanium exchangers are widely applied in marine, chemical, petrochemical, pharmaceutical, and energy industries. Different structures including Shell and Tube Heat Exchanger, S&T Heat Exchanger, and U Tube Heat Exchanger configurations can be customized according to process requirements.
For high-standard industrial projects, we provide certified ASME Heat Exchanger solutions with strict manufacturing control. Titanium replacement components such as ASME Tube Bundle are also available for existing heat exchange systems.
With professional engineering capability, Wuxi Yiteng provides complete Custom Heat Exchanger solutions including thermal design, material selection, fabrication, inspection, and export documentation.
| Technical Item | Specification |
|---|---|
| Product Type | Titanium Shell and Tube Heat Exchanger |
| Equipment Structure | Shell and Tube Type |
| Design Standard | ASME VIII Div.1 / TEMA / GB151 / EN13445 |
| Certification | ASME U Stamp / ISO9001 / PED |
| Heat Transfer Area | 1~5000 m² |
| Design Pressure | -0.1~35 MPa |
| Maximum Pressure | Up to 50 MPa |
| Design Temperature | -196℃~600℃ |
| Shell Material | Titanium Grade 2 / Titanium Alloy |
| Tube Material | Titanium Grade 2 / Titanium Alloy |
| Tube Sheet Material | Titanium / Titanium Clad Steel |
| Tube Diameter | Φ6~Φ60 mm |
| Tube Length | 500~12000 mm |
| Tube Arrangement | Triangle Pitch / Square Pitch |
| Tube Pass | Single Pass / Multi Pass |
| Shell Pass | Single Pass / Multiple Pass |
| Tube Connection | Expansion / Welding / Expansion + Welding |
| Baffle Type | Segmental Baffle / Rod Baffle |
| Welding Standard | ASME IX / ISO 3834 |
| Inspection Method | RT / UT / PT / PMI |
| Pressure Test | Hydraulic Test / Leakage Test |
| Surface Treatment | Pickling / Passivation / Polishing |
Used for:
Applications:
Used for:
Suitable for:
Applications:
Experienced in manufacturing customized pressure equipment and corrosion-resistant heat transfer solutions.
Providing titanium, duplex stainless steel, nickel alloy, and other special material solutions.
Manufactured according to:
Supporting:
