Place of Origin:
Jiangsu China
Brand Name:
Yiteng
Certification:
ASME U/ISO9001/ ISO45001/ ISO14001/PED/CE/CRTU/DOSH
Model Number:
WFE/SPD/BEM/BES/AES/BEU/TFE

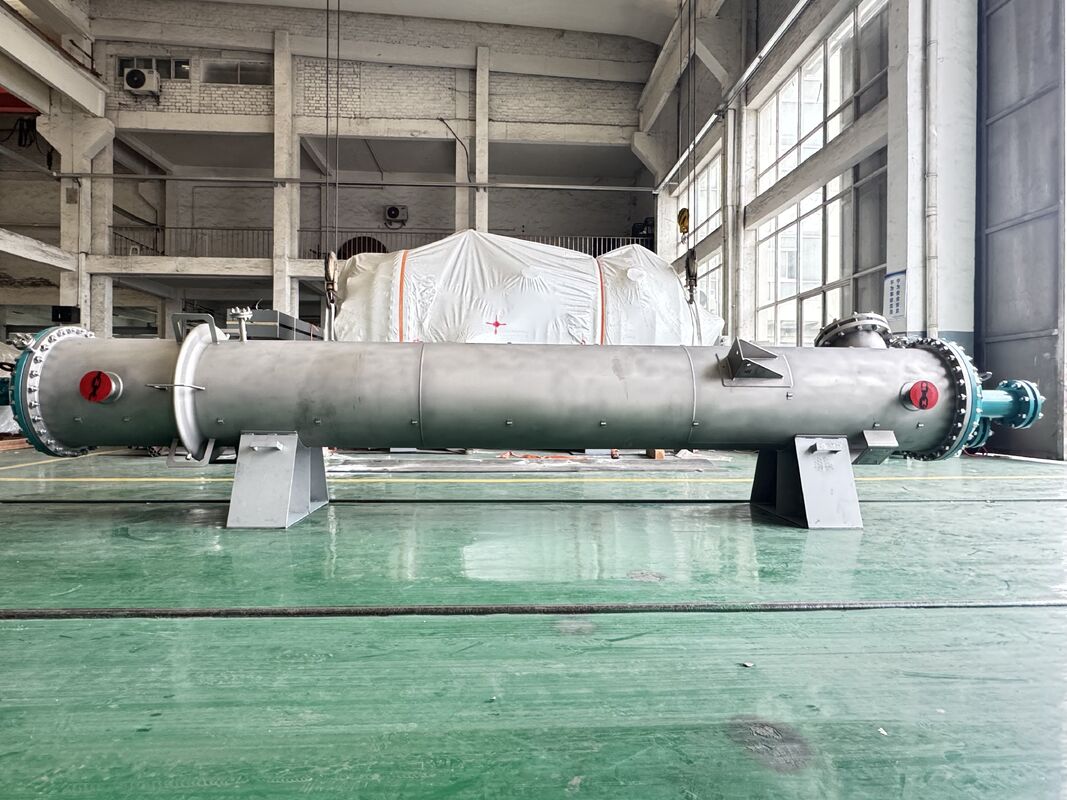

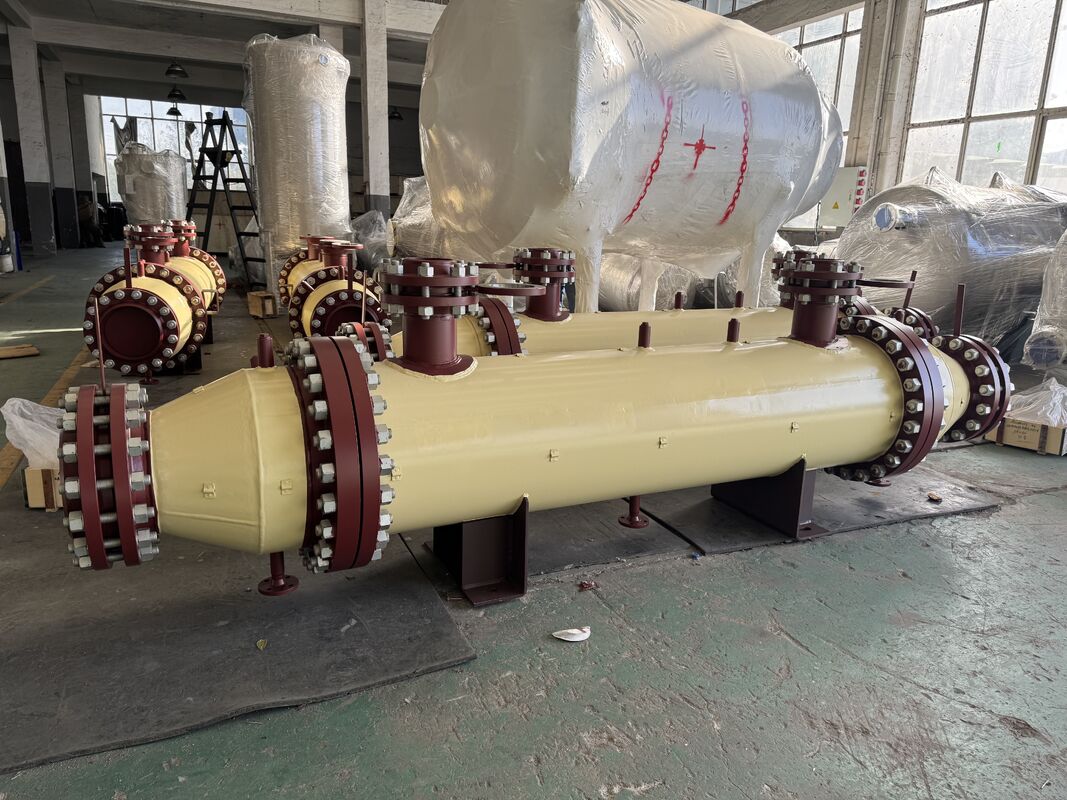

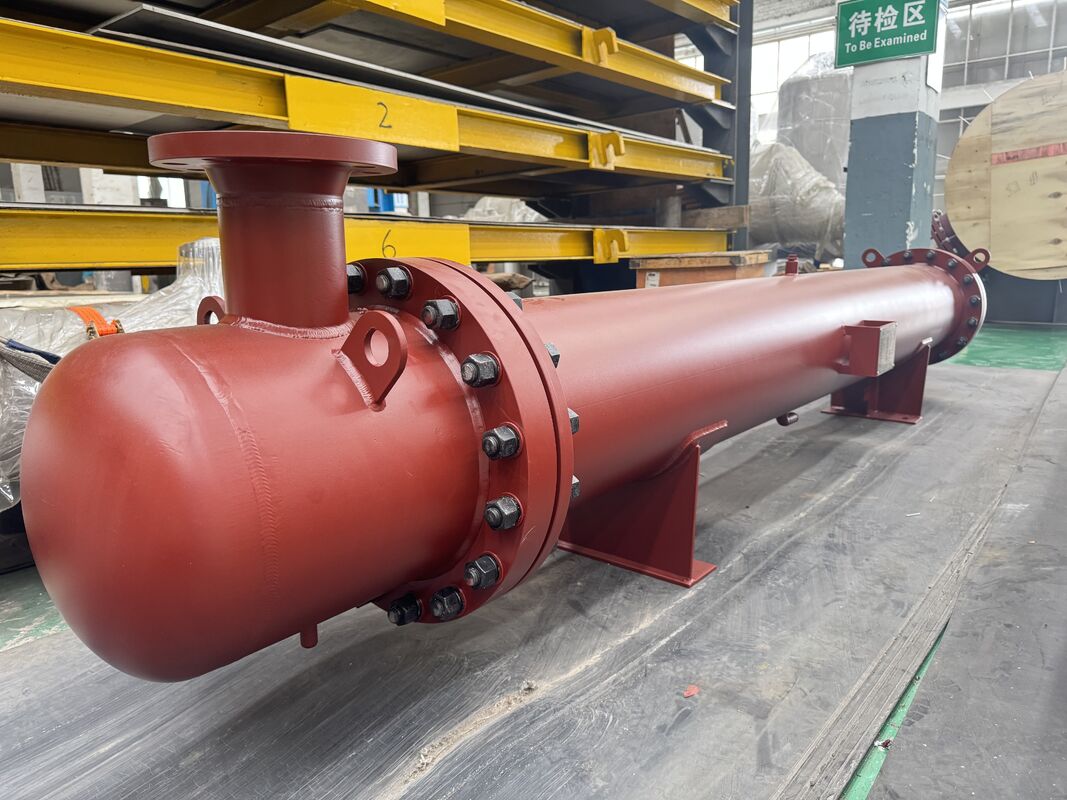

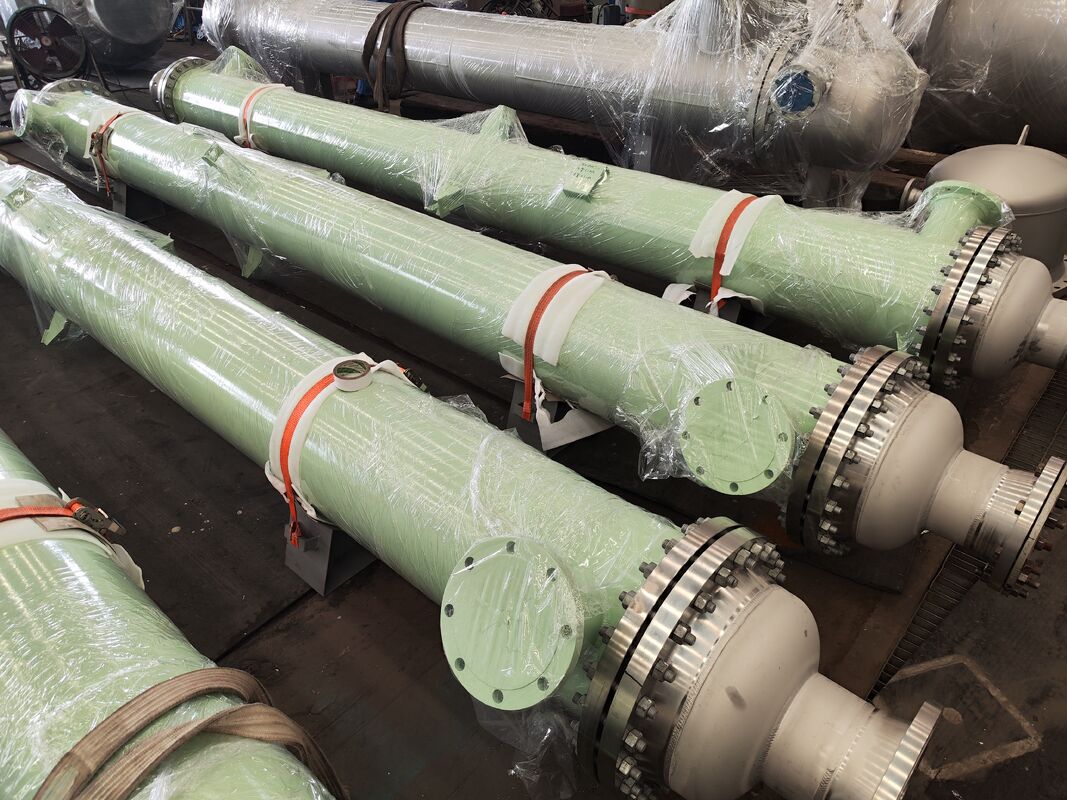

A Fixed Tube Sheet Heat Exchanger is a commonly used shell and tube heat transfer solution featuring permanently welded tube sheets on both ends of the shell. This compact and reliable structure provides excellent heat transfer efficiency, mechanical strength, and stable performance for continuous industrial operation.
Unlike removable designs, the fixed tube sheet structure offers a simple configuration with fewer components, making it a cost-effective choice for applications where shell-side cleaning requirements are limited and thermal expansion is relatively controlled.
As a professional Heat Exchanger Manufacturer, Wuxi Yiteng designs and manufactures customized fixed tube sheet exchangers according to customer process conditions, including temperature, pressure, fluid characteristics, heat transfer requirements, and material specifications.
Our fixed tube sheet exchangers are widely integrated into Shell and Tube Heat Exchanger systems for chemical processing, petrochemical plants, energy projects, and industrial production lines. The equipment includes shell body, tube sheets, tubes, baffles, channels, and complete Tube Bundle assemblies.
For customers requiring standardized and certified pressure equipment, we provide ASME Heat Exchanger solutions manufactured according to international pressure vessel standards.
Different configurations such as S&T Heat Exchanger, U Tube Heat Exchanger, and Tube Sheet Heat Exchanger can be customized based on specific operating conditions.
We also provide complete Custom Heat Exchanger engineering services, including thermal design, mechanical calculation, fabrication, testing, and export documentation.
| Technical Item | Specification |
|---|---|
| Product Type | Fixed Tube Sheet Heat Exchanger |
| Equipment Structure | Shell and Tube Heat Exchanger |
| Design Standard | ASME VIII Div.1 / TEMA / GB151 / EN13445 |
| Certification | ASME U Stamp / ISO9001 / PED |
| Tube Sheet Type | Fixed Welded Tube Sheet |
| Heat Transfer Area | 1~5000 m² |
| Design Pressure | Vacuum ~35 MPa |
| Maximum Pressure | Up to 50 MPa |
| Design Temperature | -196℃ ~ +600℃ |
| Tube Diameter | Φ6~Φ60 mm |
| Tube Length | 500~12000 mm |
| Tube Arrangement | Triangle Pitch / Square Pitch |
| Tube Pass | Single Pass / Multi Pass |
| Shell Pass | Single Pass / Multiple Pass |
| Tube Material | SS304 / SS316L / Duplex Stainless Steel / Titanium / Nickel Alloy |
| Shell Material | Carbon Steel / Stainless Steel / Alloy Steel |
| Tube Sheet Material | Carbon Steel / Stainless Steel / Clad Plate |
| Tube Connection | Expansion / Welding / Expansion + Welding |
| Baffle Type | Segmental Baffle / Rod Baffle |
| Welding Standard | ASME IX / ISO 3834 |
| Inspection Method | RT / UT / PT / MT |
| Pressure Testing | Hydraulic Test / Pneumatic Test |
| Surface Treatment | Pickling / Passivation / Polishing |
The tube sheet is the key pressure-bearing component. Our manufacturing process includes:
Ensuring accurate tube installation and reliable heat transfer performance.
According to application requirements, we provide:
Improving sealing reliability and pressure resistance.
Our welding capabilities include:
All welding processes are strictly controlled.
We provide:
Used for:
Applications include:
