The horizontal design combines a large heat transfer area with a mechanically agitated rotor system that continuously distributes the feed into a thin turbulent film across the heated surface. This technology significantly improves heat transfer efficiency while minimizing product residence time, making it ideal for pharmaceutical, chemical, petrochemical, food, and specialty material processing applications.
Technical Description
| Parameter | Typical Value/Range | Remarks | ||||
| Evaporation Capacity | 5～5500 kg/h | Evaporation efficiency depends on material properties and heat transfer temperature difference | ||||
| Operating Pressure | 1atm～1mbar | A vacuum system is required for high-vacuum operating conditions. | ||||
| Operating Temperature | 50-300°C | High-temperature series with maximum operating temperature up to 350°C | ||||
| Heat Transfer Area | 0.1-100m² | Custom designs available for the full range | ||||
| Wiper Speed | 2-15 m/s | Affects liquid film thickness and heat transfer efficiency | ||||
| Motor Power | 0.25-55kw | Correlates positively with rotor diameter and material viscosity | ||||
| Viscosity Range | 1-100000cP | Specialized wiper design required for high-viscosity materials | ||||
| Wiper Type | Structural Features | Material & Temp. | Clearance/Film | Application Scenarios | Viscosity Limit | Industry |
| Hinged Wiper | Spring-loaded, self-adapting to wall wear | PTFE ≤150°C Enhance PTFE ≤200°C CF-PTFE ≤250°C polybenzoate ≤280°C Copper≤300°C 304 ≤300°C 316L ≤400°C |
General purpose | 20,000 cP | Glycerol, tire additives, inorganic salts, sugar alcohols, fermentation broth, solvent recovery, waste oil regeneration, high-salinity wastewater, etc. | |
| Sliding Wiper | Graphite/PTFE bushings, hydraulic assist | / | High-precision film control | 50,000 cP | Vitamins, antibiotics, resins, plant extracts, etc. | |
| Fixed Wiper | Rigid connection, no moving parts | / | Ultra-high viscosity (polymer melts) | 100,000 cP | food additives, fruit juices, dairy products, etc. | |
| Roller Wiper | Equipped with rollers, reducing friction | / | Materials with solid particles | 30,000 cP | Foods, polymer resins, syrups, asphalt, rubber liquid, etc. | |
Shell
● Design standards: GB150, ASME VIII-1, PED, EN13445, GOST34347
● Jacket or half-pipe heating structure optional
● Internal baffles 2-3mm from wall to prevent short-circuit flow
● Heating media: hot water, thermal oil, steam
● Full boring with concentricity ≤0.05mm, polished to Ra0.2~0.8μm

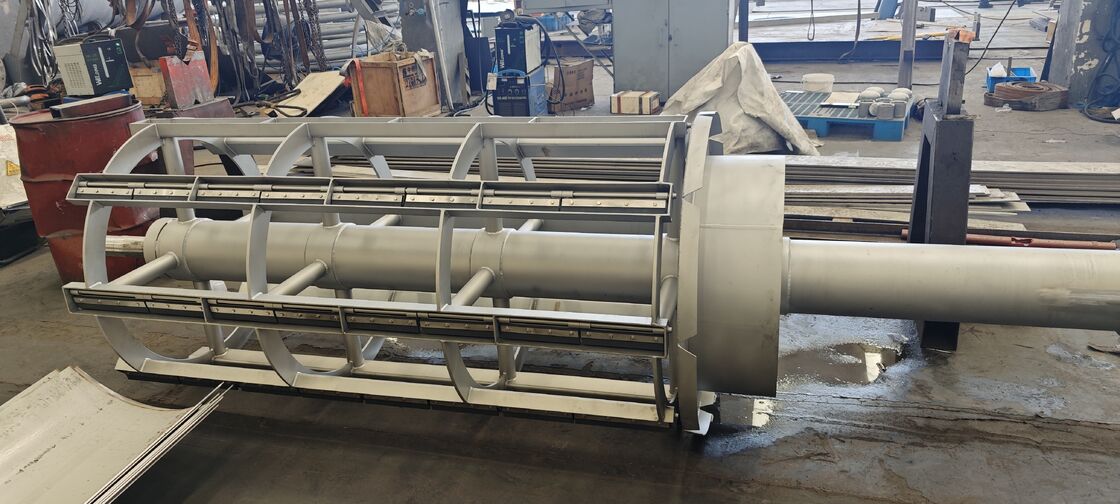

Rotor
● Core rotating assembly,installed at cylinder center
● Functions: uniform distribution, forced film forming, enhanced heat transfer
● Components: main shaft, distributor, support frame, scraper
● The concentricity of the main shaft is ≤0.05mm
● Two-stage distributor for even material spreading
● Static/dynamic balance treatment after forming
● Replaceable shaft sleeve design, can be carburized/nitrided
