Place of Origin:
Jiangsu China
Brand Name:
Yiteng
Certification:
ASME U/ISO9001/ ISO45001/ ISO14001/PED/CE/CRTU/DOSH
Model Number:
WFE/SPD/BEM/BES/AES/BEU/TFE

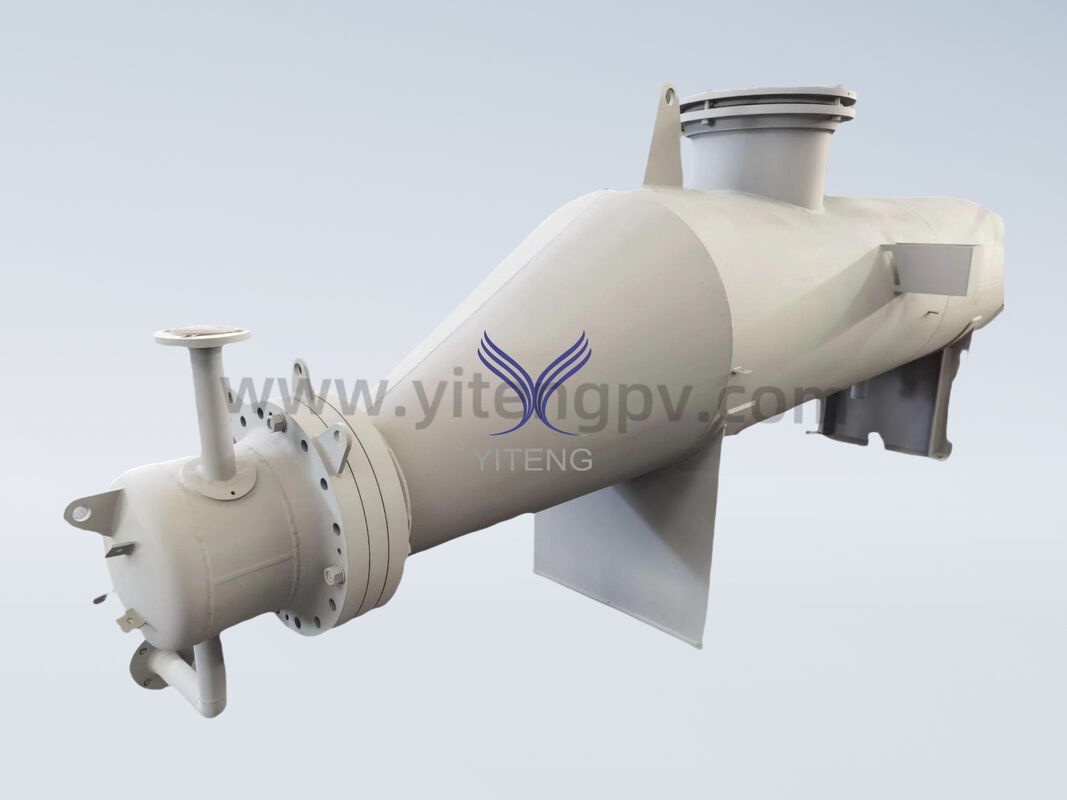

Shell and tube evaporator is a classic heat exchange equipment widely used in refrigeration, HVAC, chemical processing and food industrial systems. It consists of a pressure vessel shell and internal heat transfer tube bundles, realizing efficient heat transfer between refrigerant and process medium.
Product parameter
|
Parameter |
Specification |
Unit |
Remarks |
|
Cooling Capacity |
50 - 5000 |
kW |
Custom design available |
|
Heat Transfer Area |
5 - 1000 |
m² |
Depending on application |
|
Evaporating Temperature |
-40 to +15 |
°C |
Refrigeration duty |
|
Design Temperature |
-40 to +120 |
°C |
Customized |
|
Design Pressure |
0.6 - 4.5 |
MPa |
Higher pressure optional |
|
Type tubes Optional |
Plain/Finned/Threaded/Corrugated tube |
|
|
|
Tube Material |
CarbonSteel/SS/Duplex SS/Titanium/Nickel-Based Alloy/Copper Alloy |
- |
Optional |
|
Shell Material |
Carbon Steel / SS304 / SS316L |
- |
Optional |
|
Tube Diameter |
12.7 / 15.88 / 19.05 / 25.4 |
mm |
Standard sizes |
|
Tube Length |
1000 - 8000 |
mm |
Customized |
|
Refrigerant |
R134a, R410A, R407C, NH3, CO2 |
- |
Application dependent |
|
Water Flow Rate |
5 - 1000 |
m³/h |
Reference value |
|
Pressure Drop |
<50 |
kPa |
Typical |
|
Heat Transfer Efficiency |
>85 |
% |
Operating condition dependent |
|
Connection Size |
DN50 - DN500 |
- |
Customized |
|
Service Life |
10 - 25 |
Years |
With proper maintenance |
Why Partner With Us?
· 1:1 Drawing Optimization: Our engineering team reviews and optimizes your blueprints to reduce production costs.
· Reliable Lead Time: Streamlined manufacturing process ensures your project timeline is protected.
· Global Shipping Experience: Full support for sea freight, customs clearance, and documentation.
Let's discuss your next project!
