Name: Pharmaceutical Industry Super Duplex Shell Tube Condenser For Fluoro Chemicals
Brand: Wuxi Yiteng Pressure Vessel Co. Ltd
SKU: WFE/SPD/BEM/BES/AES/BEU/TFE
Availability: InStock

Home > Products > Shell Tube Condenser >

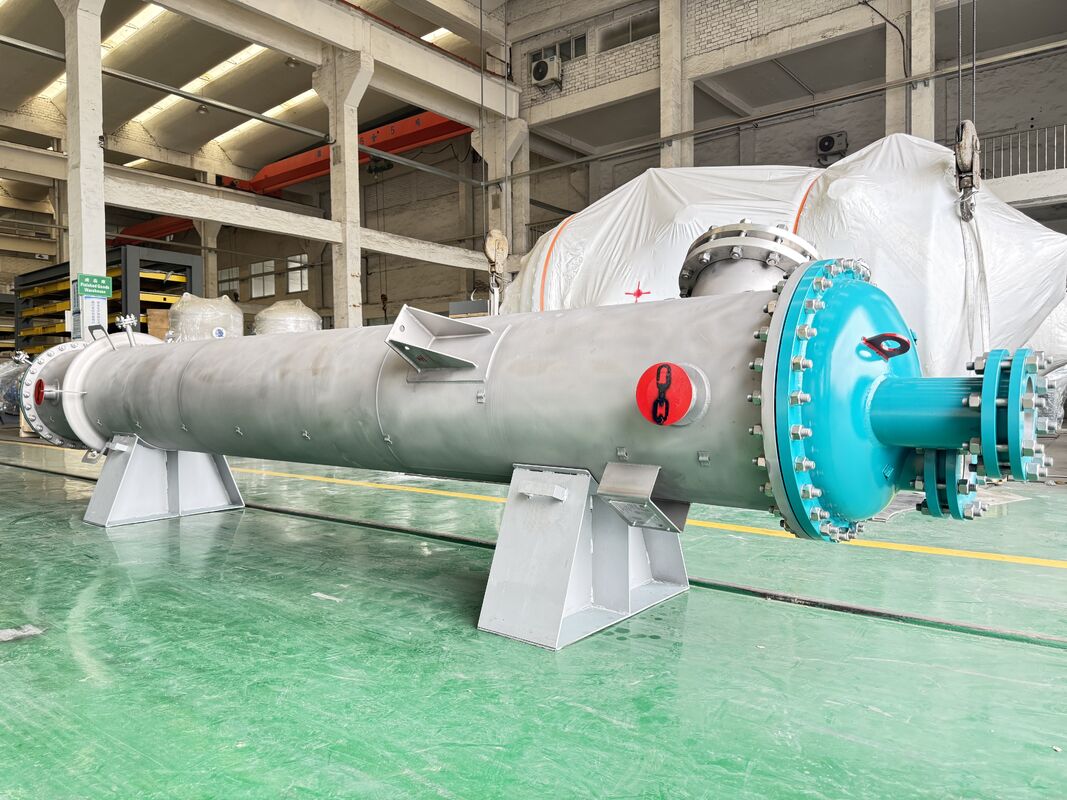

Pharmaceutical Industry Super Duplex Shell Tube Condenser For Fluoro Chemicals

Pharmaceutical Industry Shell Tube Condenser

Super Duplex Shell Tube Condenser

Fluoro Chemicals shell and tube surface condenser

Place of Origin:

Jiangsu China

Brand Name:

Yiteng

Certification:

ASME U/ISO9001/ ISO45001/ ISO14001/PED/CE/CRTU/DOSH

Model Number:

WFE/SPD/BEM/BES/AES/BEU/TFE

Chat Now

Request A Quote

Product Details

Application:

Heater, Cooler, Condenser

Style:

Steel Type

Material:

Carbon Steel/SS/Duplex SS/Titanium/Nickel-Based Alloy/Copper Alloy

MOQ:

1set

Size:

Customzied

Usage:

Oils And Fats Industry,Pharmaceutical Industry，Oils And Fats Industry， Etc

Highlight:

Pharmaceutical Industry Shell Tube Condenser

Super Duplex Shell Tube Condenser

Fluoro Chemicals shell and tube surface condenser

Payment & Shipping Terms

Minimum Order Quantity

1 Set

Price

Negotiation

Packaging Details

Steel saddle+LDPE foil+Tarpaulin/Wooden box

Delivery Time

45-60 working days

Payment Terms

T/T,L/C

Supply Ability

6000sets/Year

Industrial Shell And Tube Condenser For Steam And Process Applications

Chat Now

ASME Shell Condensing Unit Shell Tube Condenser Single Pass Multi Pass

Chat Now

Super Duplex Shell And Tube Heat Exchanger Condenser For Corrosive Environments

Chat Now

86-0510-86557570

yeekai@yitengrq.com

Chat Now

Product Description

Super Duplex Shell And Tube Condenser For Fluoro Chemicals

Product Description

A shell and tube condenser is a special type of shell-and-tube heat exchanger engineered for vapor condensation processes.In typical working conditions, hot vapor enters the shell side and releases latent heat when contacting the cold tube wall, then condenses into liquid and drains from the bottom outlet. Cooling medium such as cooling water, glycol or chilled liquid flows through the tube side to continuously take away heat.

Multiple structural designs are available including fixed tube sheet, U-tube, floating head and vertical shell tube condenser. A full range of construction materials can be customized: carbon steel, SS304, SS316L, duplex 2205, copper alloy and titanium to adapt to clean, scaling, high-chloride and corrosive media.

Our shell and tube condensers are designed and manufactured in accordance with GB/T 151, ASME VIII Div.1, TEMA, EN 13445, API 660, as well as TR CU 032/2013 and corresponding GOST standards for the Russian EAEU market.

Parameter	Super Duplex 2507	Technical Benefit
PREN Value	>40	Excellent pitting and crevice corrosion resistance
Yield Strength	≈550 MPa	About 2× 316L
Tensile Strength	≈800 MPa	Suitable for high-pressure service
Chloride Resistance	Excellent	Ideal for seawater applications
Temperature Range	-50°C to 300°C	Wide operating range
Design Life	>20 years	Lower lifecycle cost

Product parameter

Why Partner With Us?

· 1:1 Drawing Optimization: Our engineering team reviews and optimizes your blueprints to reduce production costs.

· Reliable Lead Time: Streamlined manufacturing process ensures your project timeline is protected.

· Global Shipping Experience: Full support for sea freight, customs clearance, and documentation.

Let's discuss your next project!

Packaging & Shipping

Tags：
