Place of Origin:
Jiangsu China
Brand Name:
Yiteng
Certification:
ASME U/ISO9001/ ISO45001/ ISO14001/PED/CE/CRTU/DOSH
Model Number:
WFE/SPD/BEM/BES/AES/BEU/TFE

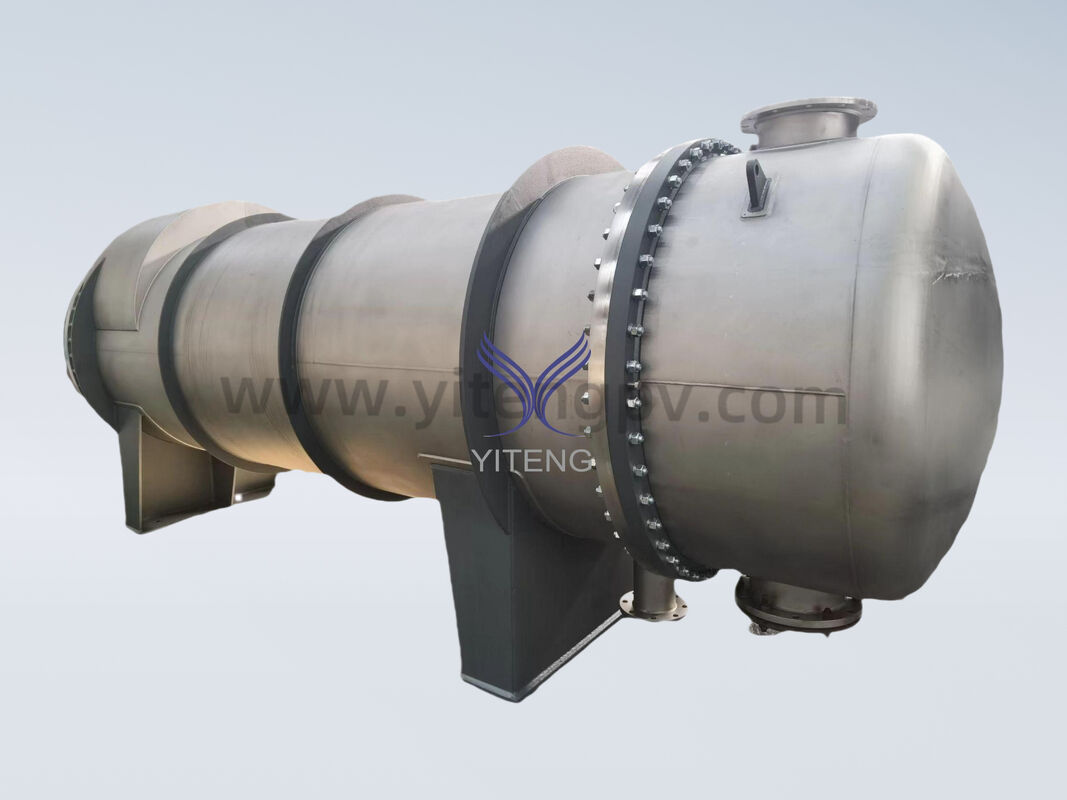

Heat exchanger is a kind of equipment used to realize the heat transfer from one kind of fluid to another, which is widely used in many fields such as chemical industry, petrochemical industry, pharmaceutical industry, food processing, energy and so on. The following is a detailed introduction to the heat exchanger: Shell and tube heat exchangers represent the most extensively applied and technologically mature solution in industrial applications. With our professional design capabilities, Yiteng has established a strong track record in the stable, long-term manufacturing of these products.
Product parameter
|
Parameter |
Typical Value/Range |
Remarks |
|
Design Standard |
GB/T151/TEMA/ASME VIII Div.1/EN13445.TEMA/API660/TR CU 032/2013(ТР ТС 032/2013) |
International standards |
|
Heat Transfer Area |
1~5000m² |
Custom sizes available |
|
Design Pressure |
-0.1~35 MPa (-1~350 bar) |
50 MPa |
|
Design Temperature |
-196°C~+600°C |
Cryogenic to high-temperature range |
|
Shell Material |
Carbon Steel/Stainless Steel/Duplex Stainless Steel/Titanium Alloy/Nickel-Based Alloy |
Corrosion-resistant options |
|
Tube Bundle Material |
Carbon Steel/Stainless Steel/Duplex Stainless Steel/Titanium Alloy/Nickel-Based Alloy/Copper Alloy |
|
|
Tube Diameter/Length |
φ10~φ60 mm/1~20m |
U-tube/straight tube options |
|
|
Welded/Tube Expanded/Strength Weldng+Light Expansion |
Leak-proof design |
|
Number of Tube Passes |
1~8 Passes |
Multi-pass flow for temperature difference optimization |
|
Baffle Type |
Single/Double/Triple segmental/Helical/NTIW/Disk-and-Doughnut |
Controls shell-side flow |
|
Connection Standard |
Flange with ANSI/DIN/GB/JIS Standard |
DN25~DN1000 |
|
Heat exchanger type |
BEM,BEU,BKU,BES,BEW,BFM,BGM,BJM,BHM,BKM,BXM,AEU,AKU,AES |
The exchanger type shall be determined based on customer requirements or thermal calculation. |
Why Partner With Us?
· 1:1 Drawing Optimization: Our engineering team reviews and optimizes your blueprints to reduce production costs.
· Reliable Lead Time: Streamlined manufacturing process ensures your project timeline is protected.
· Global Shipping Experience: Full support for sea freight, customs clearance, and documentation.
Let's discuss your next project!
