Place of Origin:
Jiangsu China
Brand Name:
Yiteng
Certification:
ASME U/ISO9001/ ISO45001/ ISO14001/PED/CE/CRTU/DOSH
Model Number:
WFE/SPD/BEM/BES/AES/BEU/TFE

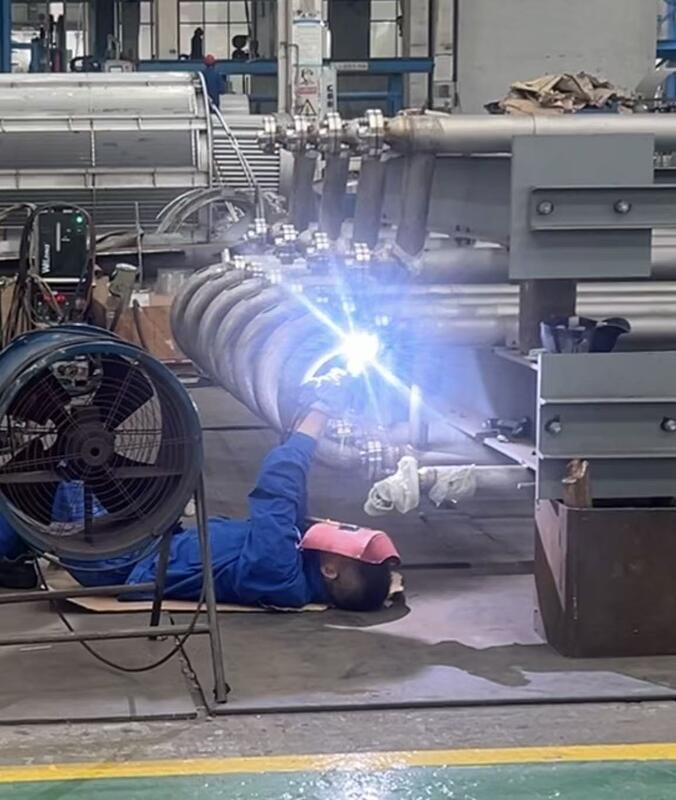

The Hairpin Heat Exchanger is a compact heat-transfer solution designed for applications requiring true counter-current flow, high temperature differences, high pressure or limited installation space.
Also known as a Hairpin Heat Exchanger, Double Pipe Heat Exchanger or Multitube Hairpin Exchanger, it uses a U-shaped configuration to provide efficient heat transfer while accommodating thermal expansion.
Compared with conventional shell and tube configurations, the true counter-current arrangement can be particularly advantageous when the process requires a close temperature approach or temperature cross.
Hot and cold fluids flow in opposite directions, maximizing the effective temperature driving force. This configuration is especially useful for applications with:
The U-shaped hairpin arrangement provides a compact equipment footprint and can be assembled in series or parallel according to the required heat-transfer duty.
The tubular configuration is well suited to demanding pressure applications. Depending on size, material and design conditions, hairpin exchangers can be engineered for very high pressure service.
The U-tube configuration naturally accommodates differential thermal expansion between the tube and shell, making hairpin exchangers attractive for applications with large temperature differences.
Multiple hairpin sections can be connected in series or parallel to achieve the required heat-transfer area, capacity and pressure-drop conditions.
| Parameter | Typical Value/Range | Remark |
|---|---|---|
| Design Standard | SH/T 3119-2016/ASME VIII Div.1/TEMA/EN13445/API660 | International standards |
| Heat Transfer Area | 1~500m² | Custom sizes available |
| Design Pressure | -0.1~35 MPa (-1~350 bar) | Ultra-high-pressure models up to 50 MPa |
| Design Temperature | -196°C~+600°C | Cryogenic to high-temperature range |
| Shell Material | Carbon Steel/Stainless Steel/Duplex Stainless Steel/Titanium Alloy/Nickel-Based Alloy/Copper Alloy | Corrosion-resistant options |
| Tube Bundle Material | Carbon Steel/Stainless Steel/Duplex Stainless Steel/Titanium Alloy/Nickel-Based Alloy/Copper Alloy | Optional tube types: Plain tube/Finned tube/Threaded tube/Corrugated tube |
| Tube Diameter/Length | φ10~φ60 mm/1~20m | U-tube/straight tube options |
| Tube-Tube Sheet Connection | Welded/Tube Expanded/Strength Welding+Light Expansion | Leak-proof design |
| Number of Tube Passes | 1~8 Passes | Multi-pass flow for temperature difference optimization |
| Baffle Type | Single/Double/Triple segmental/Helical/NTIW/Disk-and-Doughnut | Controls shell-side flow |
| Connection Standard | Flange with ANSI/DIN/GB/JIS Standard | DN25~DN1000 |
| Heat exchanger type | BEM,BEU,BKU,BES,BEW,BFM,BGM,BJM,BHM,BKM,BXM,AEU,AKU,AES | The exchanger type shall be determined based on customer requirements or thermal calculation. |
Different process duties call for different configurations.
A single inner tube is positioned inside the outer shell. It is suitable for relatively smaller heat-transfer duties and straightforward high-pressure services.
Multiple tubes are installed inside the hairpin shell to increase heat-transfer area. This configuration is suitable when the process requires higher thermal capacity while maintaining the hairpin's compact arrangement.
Hairpin exchangers are available in configurations including single tube, multitube, bare tube, finned tube, U-tube and removable bundle designs.
Recommended for applications where:
Finned tubes increase the effective heat-transfer surface and can be useful where one side has a relatively low heat-transfer coefficient. The appropriate fin geometry is selected according to fluid properties, fouling tendency, heat-transfer coefficient and allowable pressure drop.
A reliable Hairpin Heat Exchanger should be sized from actual process data rather than simply selecting a standard model. Our thermal design can consider:
For preliminary thermal sizing, the basic relationship is:
Q = m × Cp × ΔT
The final equipment design also requires evaluation of the overall heat-transfer coefficient, LMTD, flow velocity, pressure drop and fouling conditions.
