Place of Origin:
Jiangsu China
Brand Name:
Yiteng
Certification:
ASME U/ISO9001/ ISO45001/ ISO14001/PED/CE/CRTU/DOSH
Model Number:
WFE/SPD/BEM/BES/AES/BEU/TFE

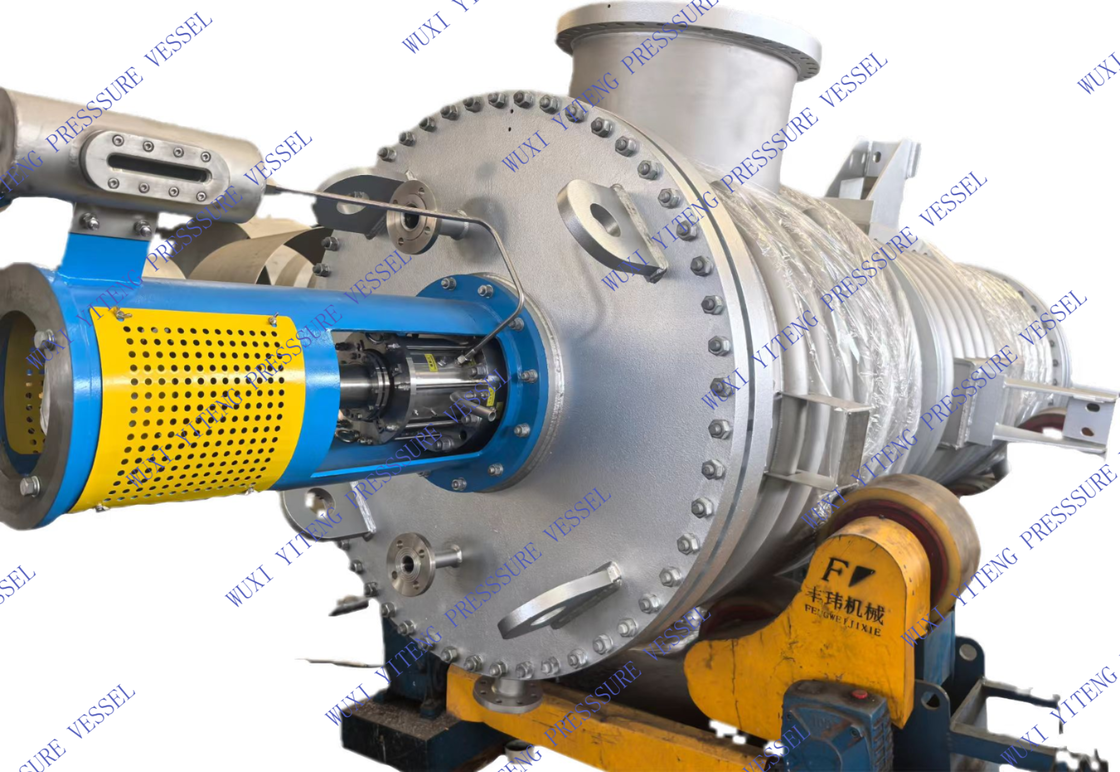

Continuous Falling Film Evaporator System
Product Description
Wuxi Yiteng Pressure Vessel Co., Ltd. designs and manufactures customized Continuous Falling Film Evaporator Systems for large-scale industrial concentration processes.
The falling film evaporation technology allows liquid materials to flow downward as a thin film along the heating tubes while evaporation occurs efficiently under controlled conditions.
The system is widely used where customers require:
✓ Large processing capacity
✓ Continuous operation
✓ Low energy consumption
✓ Stable product quality
✓ Automated production
Type tubes Optional:
Plain/Finned/Threaded/Corrugated tube
Product parameter
| Parameter | Typical Value/Range | Remarks | ||||
| Evaporation Capacity | 5～5500 kg/h | Evaporation efficiency depends on material properties and heat transfer temperature difference | ||||
| Operating Pressure | 0.1~4.0 MPa (1~40 bar) | up to 5 MPa | ||||
| Operating Temperature | 50-300°C | High-temperature series with maximum operating temperature up to 350°C | ||||
| Heat Transfer Area | 0.1-100m² | Custom designs available for the full range | ||||
| Viscosity Range | 1-100000cP | Specialized wiper design required for high-viscosity materials | ||||
The feed liquid is evenly distributed into the top of the evaporation tubes.
During operation:
The falling film design provides excellent heat transfer efficiency with short residence time.
Designed for industrial production:
Advantages:
✔ High throughput
✔ Continuous operation
✔ Stable concentration performance
✔ Suitable for large factories
Compared with traditional evaporation systems:
Benefits:
✓ Lower steam consumption
✓ Higher heat utilization efficiency
✓ Multi-effect configuration available
✓ Reduced operating cost
The short residence time helps protect product quality.
Suitable for:
Applications:
Applications:
Applications:
Applications:
Applications:
✔ Large-scale industrial evaporation experience
✔ Energy-saving process design
✔ Customized complete system solution
✔ Professional stainless steel manufacturing
✔ Suitable for global EPC projects
✔ Factory direct supply
A:
They are widely used in food, dairy, pharmaceutical, chemical and fermentation industries.
A:
Yes. It is designed for continuous large-capacity industrial concentration.
A:
Yes. Capacity, number of effects, materials and automation level can be customized.
Let's discuss your next project!
