ASME Certified Replacement Tube Bundle For Industrial Heat Exchangers Condensers

ASME Certified Replacement Tube Bundle For Industrial Heat Exchangers Condensers

ASME Tube Bundle

Condensers Tube Bundle

Beverage exchanger bundle

Place of Origin:

Jiangsu China

Brand Name:

Yiteng

Certification:

ASME U/ISO9001/ ISO45001/ ISO14001/PED/CE/CRTU/DOSH

Model Number:

WFE/SPD/BEM/BES/AES/BEU/TFE

Chat Now
Request A Quote
Product Details
Application:
Heater, Cooler, Condenser
Style:
Steel Type
Material:
Stainless Steel
MOQ:
1set
Size:
Customzied
Usage:
Dairy, Food, Beverage, Pharmacy, Cosmetic, Etc
Highlight:

ASME Tube Bundle

,

Condensers Tube Bundle

,

Beverage exchanger bundle

Payment & Shipping Terms
Minimum Order Quantity
1 Set
Price
Negotiation
Packaging Details
Steel saddle+LDPE foil+Tarpaulin/Wooden box
Delivery Time
45-60 working days
Payment Terms
T/T,L/C
Supply Ability
6000sets/Year
Product Description


ASME Certified Replacement Tube Bundle

Product Overview

Wuxi Yiteng manufactures ASME Certified Replacement Tube Bundle solutions for upgrading and replacing existing heat exchanger components. Our replacement tube bundles are designed for Shell Tube Heat Exchanger Manufacturer applications, improving heat transfer efficiency and extending equipment service life.

The customized structure supports Floating Head Tube BundleASME U Tube Bundle, and stainless steel tube configurations. With professional fabrication capability, we provide OEM replacement solutions for industrial heat exchangers, condensers and evaporators.

Technical Specifications

Customized Tube Bundle Engineering Parameters



Parameter Specification
Manufacturing Standard ASME VIII Div.1 / TEMA / EN13445 / GB150 / GB151
Application Replacement / New Equipment / Upgrade Project

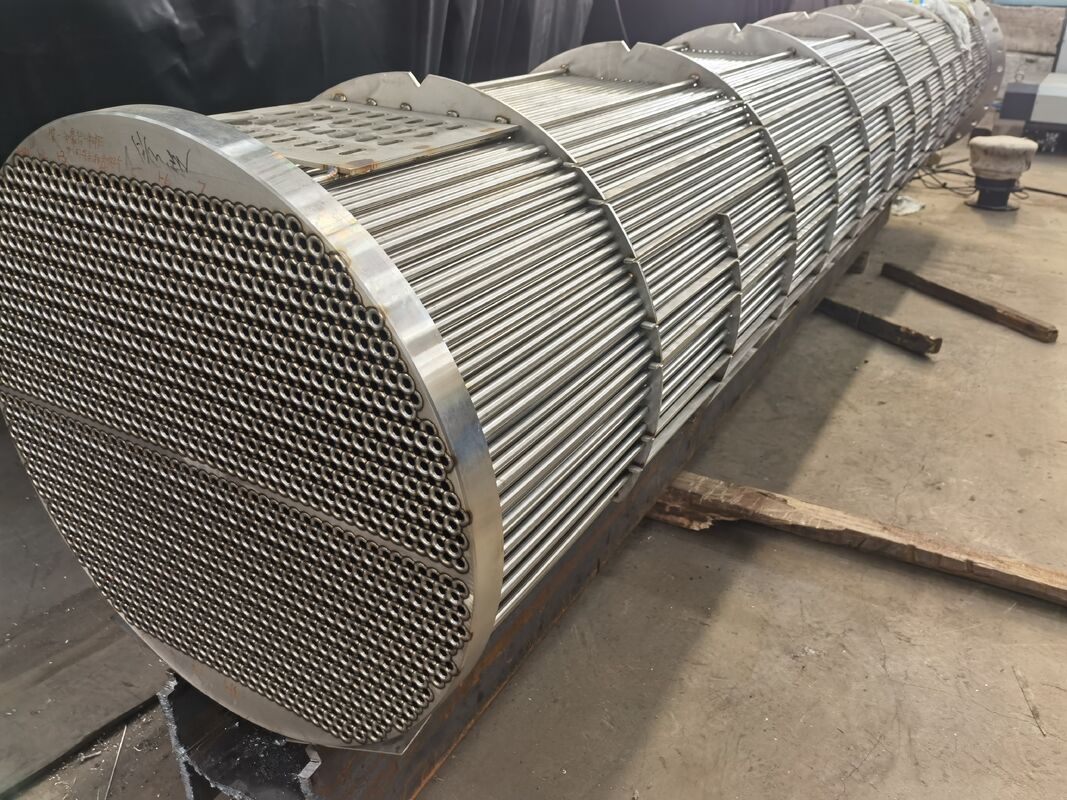

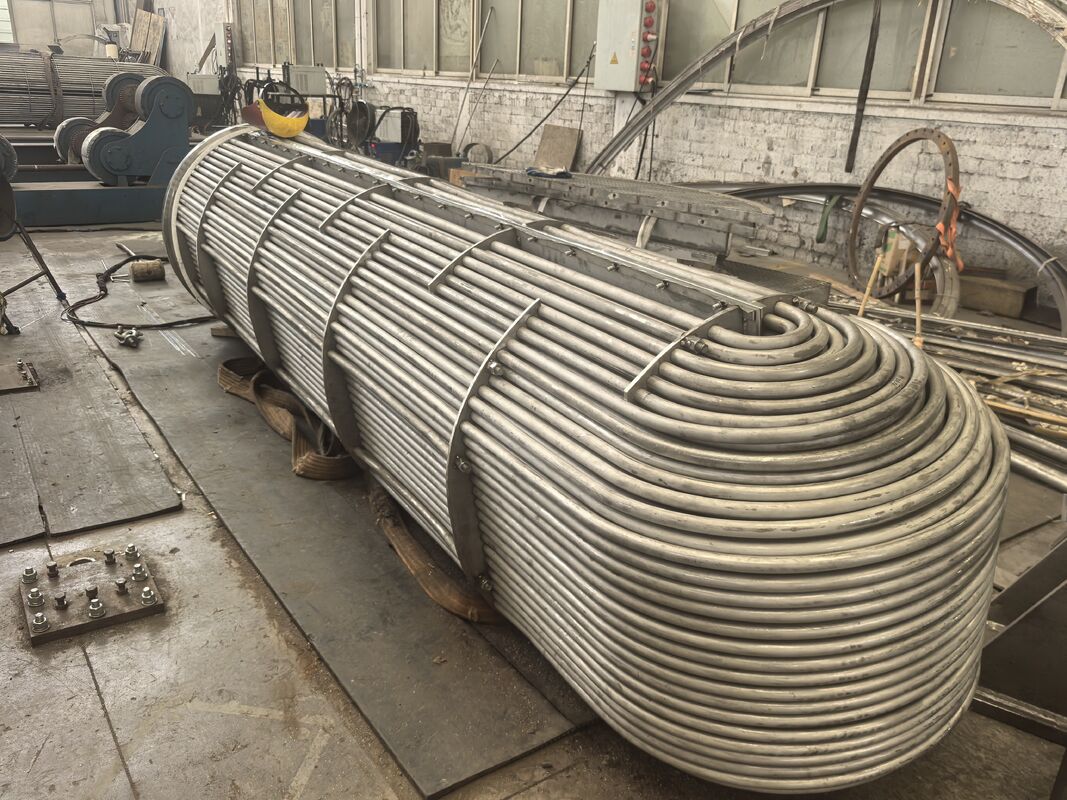

Bundle Type Fixed Tube Sheet / Floating Head / U Tube
Heat Transfer Area 1 ~ 5000 m²
Design Pressure Vacuum ~ 35 MPa
Maximum Pressure Up to 50 MPa
Temperature Range -196°C ~ +600°C
Tube Material SS304 / SS316L / Duplex / Titanium / Nickel Alloy
Tube Sheet Material Carbon Steel / Stainless Steel / Special Alloy
Tube Connection Expansion / Welding / Hybrid Design
Inspection NDT / PMI / Hydro Test / Dimensional Inspection

Manufacturing Features

Precision Manufacturing for Reliable Replacement Performance

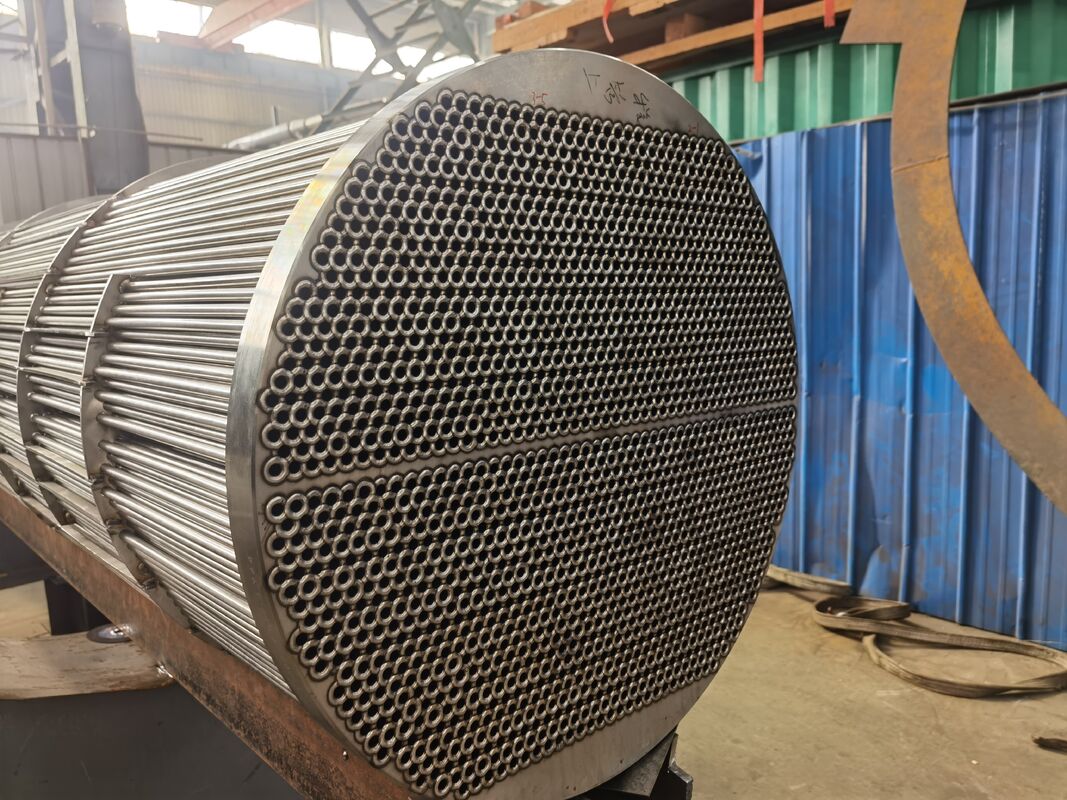

Accurate Tube Sheet Machining

Tube sheet quality directly affects bundle reliability.

Our manufacturing process includes:

✓ CNC tube hole machining
✓ Accurate tube positioning
✓ Dimensional verification
✓ Surface quality control

Ensuring proper tube alignment and long-term sealing performance.


Advanced Tube Processing Technology

Our production capability covers:

  • Tube cutting
  • Tube expansion
  • Tube welding
  • Bundle assembly
  • Pressure testing

Suitable for stainless steel, duplex steel, titanium, and nickel alloy materials.


Quality Control Throughout Production

Each ASME Tube Bundle follows strict inspection procedures:

Material Control

  • Material certificate verification
  • PMI analysis
  • Traceability management

Fabrication Control

  • Welding inspection
  • Tube expansion inspection
  • Assembly inspection

Final Testing

  • Hydrostatic pressure test
  • Dimensional inspection
  • Quality documentation

Strong Manufacturing Support

Our factory advantages:

  • 20,000 m² manufacturing area
  • 300+ sets production equipment
  • 6000 tons annual capacity
  • 600 sets annual equipment production
  • 50-ton crane lifting capability
  • 100-ton maximum equipment fabrication

    Applications

    Engineered for Heat Exchanger Maintenance & Industrial Upgrades

    Petrochemical Industry

    Used for:

    • Refinery heat exchangers
    • Condensers
    • Process cooling systems
    • Energy recovery units

    Oil & Gas Sector

    Applications:

    • Gas processing equipment
    • Offshore thermal systems
    • Heat recovery processes

    Chemical Industry

    Suitable for:

    • Corrosive media processing
    • Reaction temperature control
    • Continuous production systems

    Pharmaceutical Industry

    Applications:

    • GMP process equipment
    • Sterile systems
    • Pharmaceutical purification

    Food & Bio Processing

    Used in:

    • Food heating and cooling
    • Oil processing
    • Biological extraction

      Why Choose Wuxi Yiteng

      Professional Tube Bundle Manufacturer for Global Projects

      Designed for Replacement Efficiency

      We understand that equipment downtime creates significant production losses.

      Our tube bundle solutions help customers achieve:

      ✓ Faster replacement
      ✓ Reduced shutdown time
      ✓ Improved equipment reliability
      ✓ Extended service life


      International Manufacturing Standards

      Supporting:

      • ASME Certification
      • PED EN13445
      • AS1210 Australia
      • DOSH Malaysia
      • KHK Japan
      • NR13 Brazil
      • GB150 / GB151

    Need a Replacement or Customized ASME Tube Bundle?

    Send your existing equipment drawings or technical data.

    Our engineering team will provide a suitable solution.

    Get Your Tube Bundle Quote →

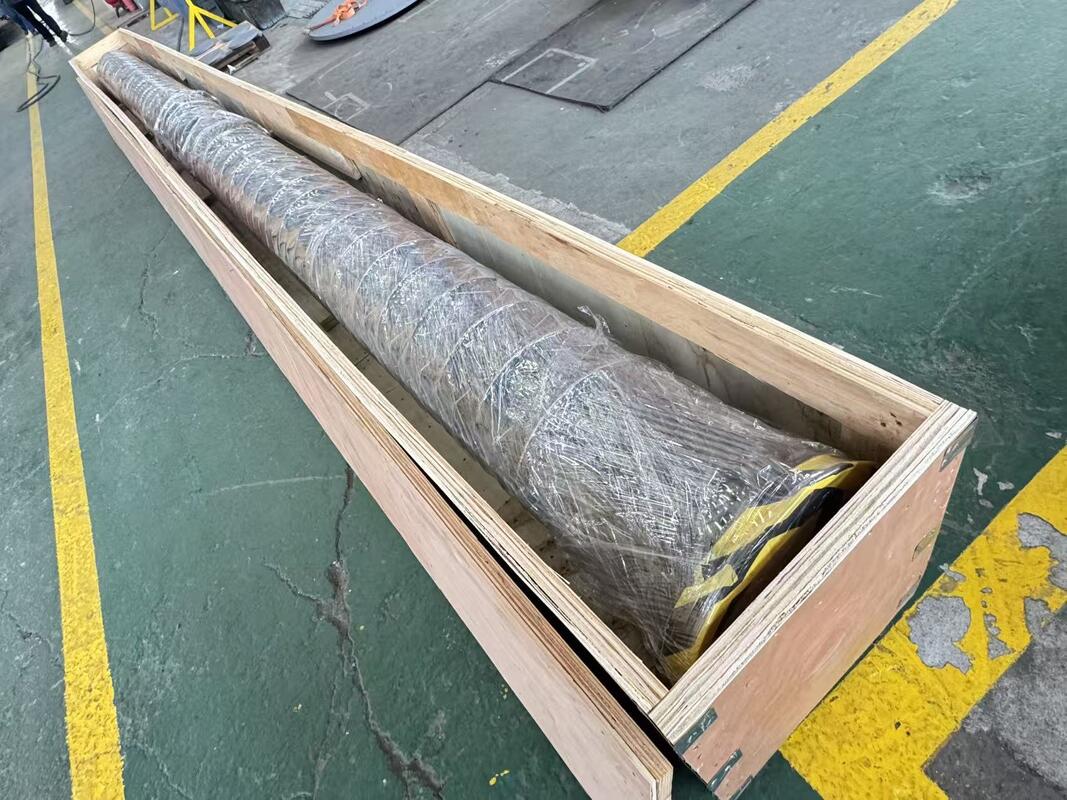

Packaging & Shipping

ASME Certified Replacement Tube Bundle For Industrial Heat Exchangers Condensers
