Place of Origin:
Jiangsu China
Brand Name:
Yiteng
Certification:
ASME U/ISO9001/ ISO45001/ ISO14001/PED/CE/CRTU/DOSH
Model Number:
WFE/SPD/BEM/BES/AES/BEU/TFE
Wuxi Yiteng Pressure Vessel Co., Ltd. specializes in manufacturing ISO 9001 Tube Sheet Heat Exchanger solutions designed for industrial applications requiring stable heat transfer performance, precise fabrication and long-term operating reliability.
As an experienced Custom Heat Exchanger manufacturer, Yiteng provides engineered thermal equipment for chemical, petrochemical, pharmaceutical, energy, food processing and industrial manufacturing industries. Our tube sheet heat exchangers are developed according to customer process requirements, ensuring excellent performance under high temperature, high pressure and corrosive working conditions.

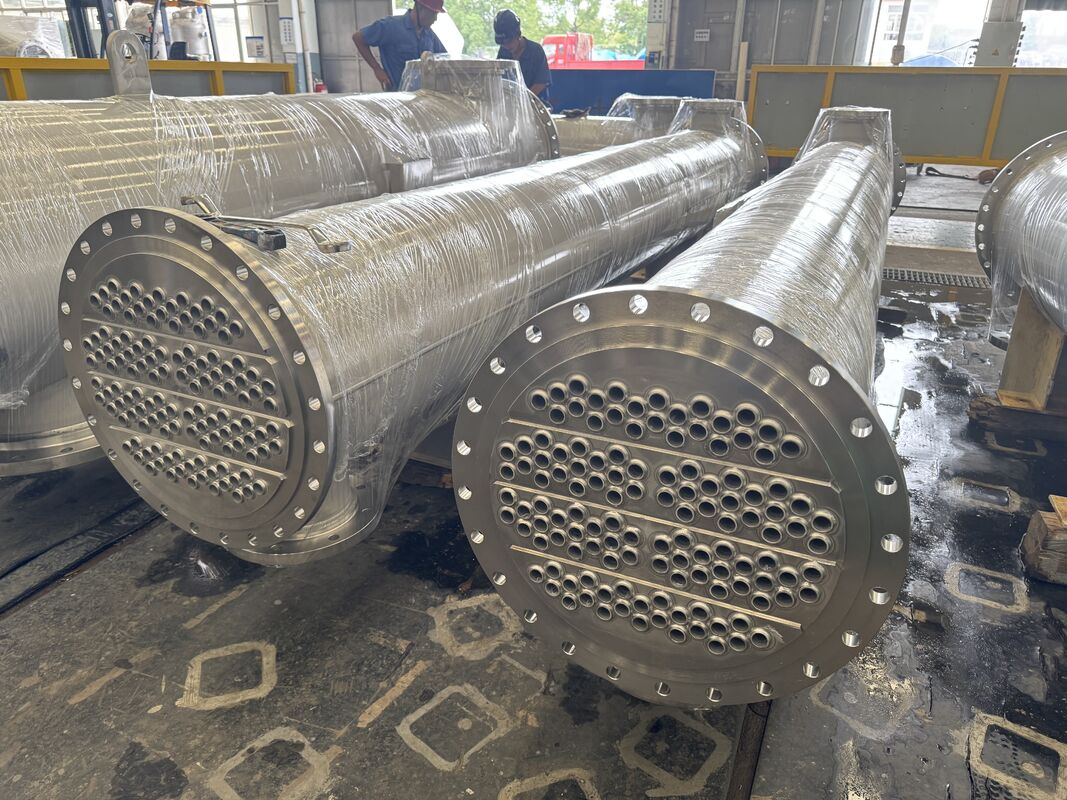

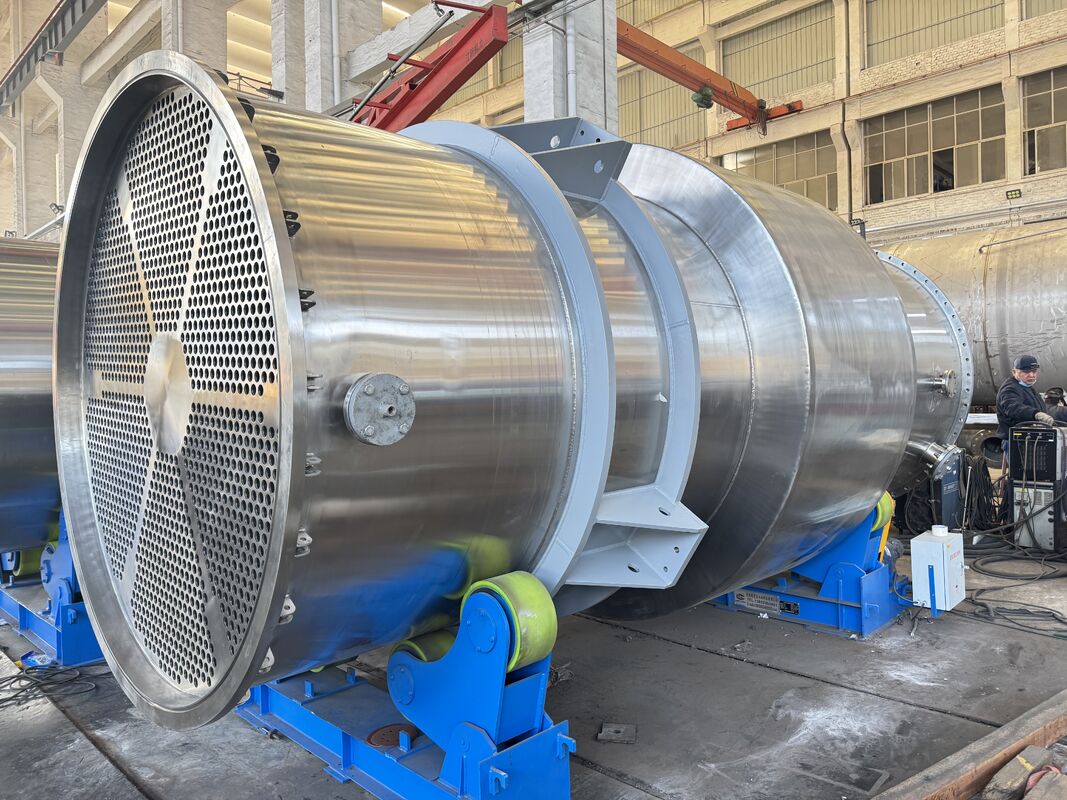

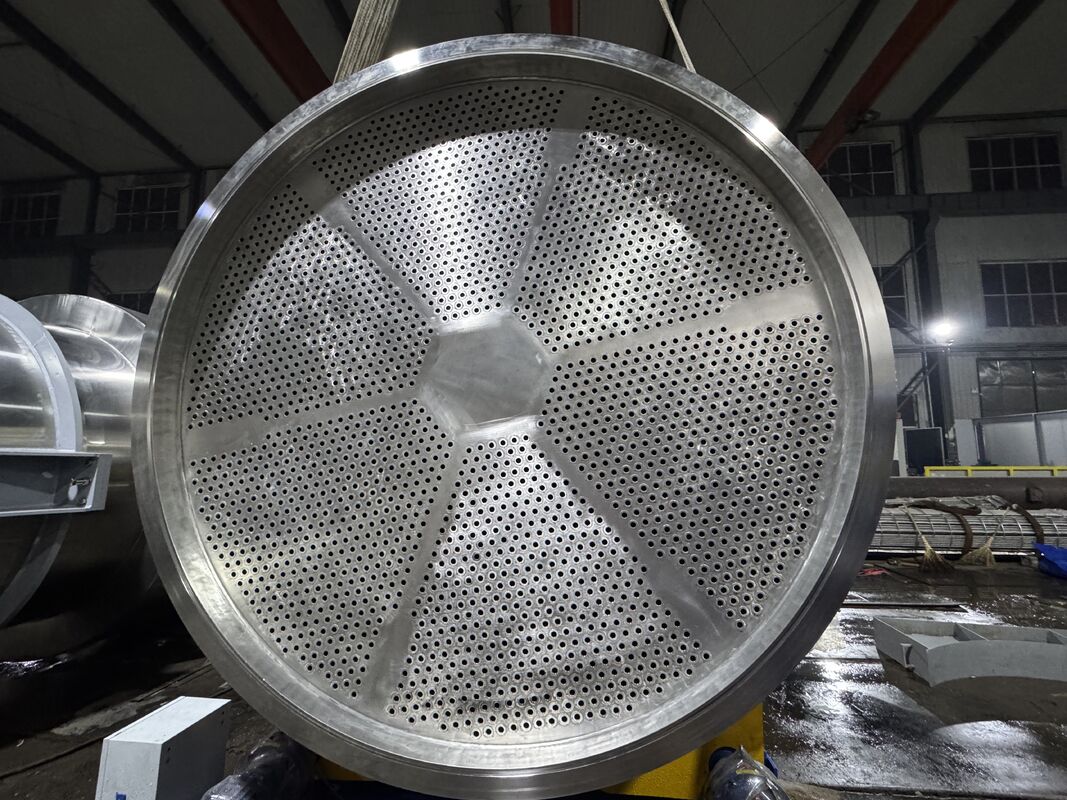

The tube sheet is one of the most critical components in shell and tube heat exchanger systems, providing structural support and reliable sealing between tubes and shell-side equipment. Through advanced machining technology, strict dimensional control and professional welding processes, Yiteng manufactures tube sheet assemblies with high mechanical strength and excellent leakage resistance.
Our ISO 9001 certified manufacturing system ensures every production stage is controlled, from material inspection and CNC machining to welding, assembly and final testing. Various configurations are available, including fixed tube sheet, floating tube sheet and removable tube bundle designs.
Yiteng Tube Sheet Heat Exchangers are designed through professional thermal calculation and mechanical engineering analysis to achieve efficient heat exchange and reliable pressure performance.
| Parameter | Specification |
|---|---|
| Product Type | ISO 9001 Tube Sheet Heat Exchanger |
| Equipment Structure | Shell and Tube / Fixed Tube Sheet / Floating Tube Sheet |
| Quality System | ISO 9001 Certified Manufacturing System |
| Design Standard | ASME VIII Div.1 / TEMA / GB151 / EN13445 / API660 |
| Heat Transfer Area | 1 ~ 5000 m² |
| Design Pressure | Full Vacuum ~ 35 MPa |
| Design Temperature | -196°C ~ +600°C |
| Tube Sheet Type | Fixed / Floating / Integrated Tube Sheet |
| Tube Material | SS304 / SS316L / Duplex Stainless Steel / Titanium / Hastelloy / Nickel Alloy |
| Shell Material | Carbon Steel / Stainless Steel / Duplex Steel / Titanium Alloy |
| Tube Diameter | Customized |
| Tube Length | Customized |
| Tube Arrangement | Triangular / Square / Rotated Square Pitch |
| Tube Connection | Expansion / Welding / Expansion + Welding |
| Nozzle Design | Customized According to Process Requirements |
| Inspection Method | UT / RT / PT / MT / Hydrostatic Testing |
ISO 9001 Tube Sheet Heat Exchangers are widely used in industrial systems requiring dependable thermal performance and stable mechanical operation.
Used for:
Applied in:
Suitable for pharmaceutical production processes requiring:
Used in:
Selecting a professional manufacturer is essential for achieving reliable equipment performance and reducing lifecycle costs. Wuxi Yiteng provides customized heat exchanger solutions supported by engineering expertise and quality manufacturing systems.
Our production processes follow ISO 9001 quality management principles, ensuring controlled manufacturing procedures and consistent product quality.
With advanced machining equipment and experienced technicians, Yiteng specializes in:
