Technical Advantages

Advantages of ASME U Tube Heat Exchanger

1. Excellent Thermal Expansion Capability

The U-shaped tube design allows tubes to expand and contract freely during heating and cooling cycles. This significantly reduces thermal stress and improves equipment lifespan.

2. High Temperature Resistance

Designed for severe operating environments, U tube heat exchangers can handle large temperature differences between shell-side and tube-side fluids.

Typical operating conditions:

• Design temperature:
  -196°C ~ +600°C
• Design pressure:
  -0.1 ~ 35 MPa
• Heat transfer area:
  1 ~ 5000 m²

3. Easy Maintenance and Inspection

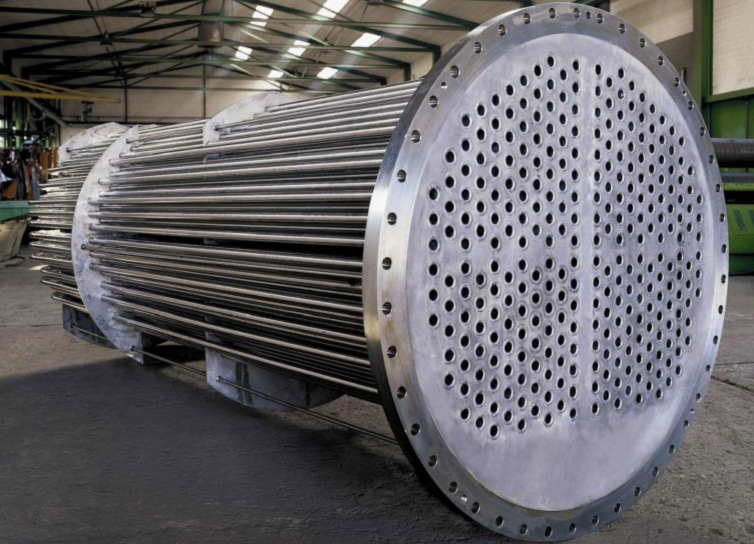

The removable tube bundle structure allows operators to remove the bundle for:

• Tube inspection
• Mechanical cleaning
• Non-destructive testing
• Repair and replacement

This reduces maintenance costs compared with welded fixed structures.

4. Suitable for Corrosive Applications

Different material options are available according to process requirements:

• Stainless Steel 304
• Stainless Steel 316L
• Duplex Stainless Steel
• Super Duplex Stainless Steel
• Titanium Alloy
• Nickel-based Alloy

These materials provide excellent corrosion resistance in chemical and marine environments.

5. Reliable Pressure Performance

Our ASME-certified manufacturing process includes:

• ASME qualified welding procedures
• Pressure testing
• Radiographic testing
• Ultrasonic testing
• Dimensional inspection

Ensuring safe operation under high-pressure conditions.

Manufacturing Features

At Wuxi Yiteng Pressure Vessel Co., Ltd., every U tube heat exchanger is manufactured through controlled engineering procedures to guarantee performance, durability, and compliance with international standards.

ASME Certified Manufacturing Process

Our production follows:

• ASME Section VIII Division 1
• TEMA standards
• GB/T151 standards
• EN13445 requirements

From raw material inspection to final pressure testing, every production stage is carefully controlled.

Precision Tube Bending Technology

The U tube forming process requires high precision to maintain:

• Tube diameter accuracy
• Bend radius consistency
• Smooth internal flow passage
• Reduced mechanical stress

Advanced bending equipment ensures stable tube geometry and reliable heat transfer performance.

Professional Welding Technology

Manufacturing includes:

• Automatic welding
• TIG welding
• Pressure vessel welding procedures
• Welding quality inspection

All weld seams undergo strict inspection to ensure structural integrity.

Non-Destructive Testing (NDT)

Available inspection methods include:

• Radiographic Testing (RT)
• Ultrasonic Testing (UT)
• Liquid Penetrant Testing (PT)
• Magnetic Particle Testing (MT)

These inspections ensure hidden defects are identified before delivery.

Complete Pressure Testing

Before shipment, each unit undergoes:

• Hydraulic pressure testing
• Pneumatic testing (when required)
• Leak testing
• Final dimensional inspection

Guaranteeing safe installation and reliable operation at customer sites.

Why Choose Us

Why Choose Wuxi Yiteng for ASME U Tube Heat Exchanger?

Professional Pressure Vessel Manufacturer

With extensive experience in pressure equipment manufacturing, Wuxi Yiteng provides customized heat exchanger solutions for global industrial customers.

ASME Qualified Production Capability

Our manufacturing system follows international pressure vessel standards, ensuring every product meets strict requirements for safety and reliability.
