Place of Origin:
Jiangsu China
Brand Name:
Yiteng
Certification:
ASME U/ISO9001/ ISO45001/ ISO14001/PED/CE/CRTU/DOSH
Model Number:
WFE/SPD/BEM/BES/AES/BEU/TFE

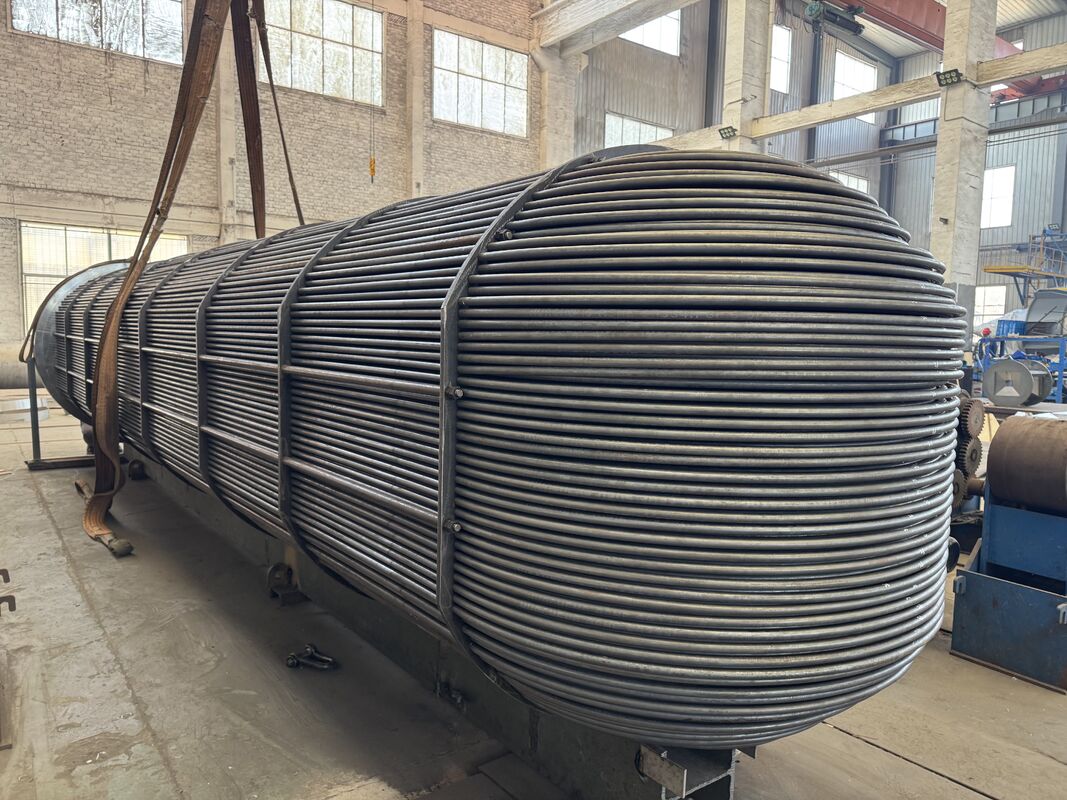

A U Tube Bundle is the core heat transfer component of a U-Tube Heat Exchanger, consisting of a tube sheet, U-shaped tubes, baffles, tie rods, spacers, and supporting structures. Designed to accommodate thermal expansion between the shell and tube sides, the U-tube configuration eliminates the need for an expansion joint and provides excellent reliability under high-temperature and high-pressure operating conditions.
The tube bundle can be supplied as a replacement unit for existing heat exchangers or as part of newly manufactured shell and tube heat exchangers. It is widely used in petrochemical, chemical, pharmaceutical, power generation, oil & gas, food processing, and marine industries.
Product parameter
|
Parameter |
Typical Value/Range |
Remark |
|
Design Standard |
GB/T151/ASME VIII Div.1/TEMA/EN13445/API660/TR CU 032/2013(ТР ТС 032/2013) |
International standards |
|
Heat Transfer Area |
1~5000m² |
Custom sizes available |
|
Design Pressure |
-0.1~35 MPa (-1~350 bar) |
Ultra-high-pressure models up to 50 MPa |
|
Design Temperature |
-196°C~+600°C |
Cryogenic to high-temperature range |
|
Shell Material |
Carbon Steel/Stainless Steel/Duplex Stainless Steel/Titanium Alloy/Nickel-Based Alloy |
Corrosion-resistant options |
|
Tube Bundle Material |
Carbon Steel/Stainless Steel/Duplex Stainless Steel/Titanium Alloy/Nickel-Based Alloy/Copper Alloy |
Optional tube types: Plain tube/Finned tube/Threaded tube/Corrugated tub |
|
Tube Diameter/Length |
φ10~φ60 mm/1~20m |
U-tube/straight tube options |
|
Tube-Tube Sheet Connection |
Welded/Tube Expanded/Strength Weldng+Light Expansion |
Leak-proof design |
|
Number of Tube Passes |
1~8 Passes |
Multi-pass flow for temperature difference optimization |
|
Baffle Type |
Single/Double/Triple segmental/Helical/NTIW/Disk-and-Doughnut |
Controls shell-side flow |
|
Connection Standard |
Flange with ANSI/DIN/GB/JIS Standard |
DN25~DN1000 |
|
Heat exchanger type |
BEM,BEU,BKU,BES,BEW,BFM,BGM,BJM,BHM,BKM,BXM,AEU,AKU,AES |
The exchanger type shall be determined based on customer requirements or thermal calculation. |
Why Partner With Us?
· 1:1 Drawing Optimization: Our engineering team reviews and optimizes your blueprints to reduce production costs.
· Reliable Lead Time: Streamlined manufacturing process ensures your project timeline is protected.
· Global Shipping Experience: Full support for sea freight, customs clearance, and documentation.
Let's discuss your next project!
